• Model NO.：Dicing Saw DS616
• Alignment System：70X Straight Light + Ring Light(210X Optional)
• Spindle: Revolution Speed Range：3000~40000 Rpm
• Spindle: Output Power：1.5kw
• X Axis: Feed Speed Range：0.1~400mm,S
• Y Axis: Single-Step Accuracy：≤0.003mm,5mm
• Z Axis: Repeatability Accuracy：0.002mm
• Power Supply：Single Phase, AC220V±10%
• Power Consumption：0.8kw (Processing); 0.7kw (Warming up)
• Transport Package：Standard Export Packing
• Specification：665mm× 850mm× 1650 mm; 500kg
• Origin：China
• HS Code：84862090
• Production Capacity：200+ Sets,Year

Power consumption	0.8kW (processing)
0.7kW (warming up)
Compressed air	Pressure: 0.55~0.8Mpa; average flow rate: 350L/min
Cleaning water	Pressure: 0.2~0.4Mpa; flow rate: 3.0L/min
Cooling water	Pressure: 0.2~0.4Mpa; flow rate: 1.5L/min
Exhaust air rate	2m3/min (ANR)
Overall dimensions W×D×H	665mm×850mm×1650 mm
Weight	500kg



Environmental Conditions

• Use clean, oil-free air (dew point below -15ºC, residual oil: 0.1 ppm, and filtration rating: 0.01μm/99.5 % or more).
• Keep room temperature fluctuations within ±1ºC of the set value (Set value should be between 20ºC - 25ºC), indoor humidity no more than 80% and no condensation.
• Keep cutting water 2ºC above room temperature (fluctuations within ±1ºC). Keep temperature of cooling water the same as room temperature (fluctuations within ±1ºC).
• The machines should be used in an environment, free from external vibration. Do not install machine near a ventilation opening, blower, heat generation equipment or oil mist generating parts.
• Please install the machine on the floor with sufficient waterproofing and drainage treatments.
• Please follow the product manual of our company.

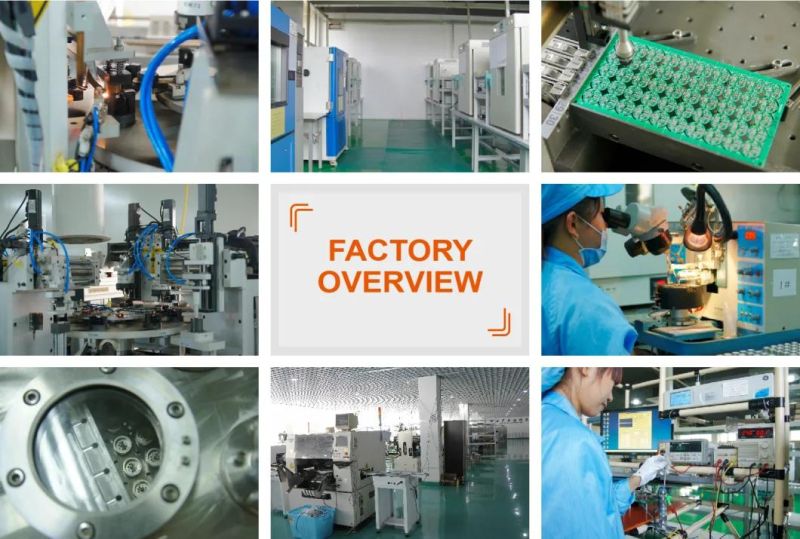

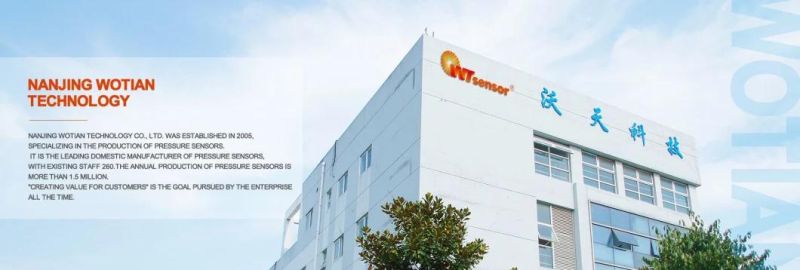

About Us:







Certifications:


FAQ:
1.    Q: Are you manufacturer or trading company?
        A: We are manufacturer which focuses on pressure sensor for 33 years.
2.    Q: What international certificates do you have?
        A: ISO9001, CE, RoHS Certificated.
3.    Q: What is your production capacity?
        A: We produced 1500000 pieces pressure sensor in year 2017.
4.    Q: What is the lead time of your product?
        A: Stocks are available for some products. The typical lead time is 8~14 working days for product without customization.
       Note: lead time may vary base on different products. Please contact us for detailed lead time.
5.    Q: What is the warranty of your products?
       A: Our warranty time is 18 months after shipment.
6.    Q: Do you provide customized products?
       A: Yes, we can laser mark your logo, model and product information according to your requirement. We provide OEM and ODM service.
