• Model NO.：Black HSS Straight Shank Twist Drill -DIN338
• Drill shape：Round
• Condition：New
• Customized：Customized
• Manufacturing Process：Fully Ground
• Material：HSS
• Sizes：0.2mm~20mm
• Point Angle：118 and 135 Split Point
• Transport Package：as Requested
• Trademark：INGLAU
• Origin：China
• HS Code：82975090
• Production Capacity：50, 000, 000PCS,Month

Basic Info.

Model NO. Black HSS Straight Shank Twist Drill -DIN338 Drill shape Round Condition New Customized Customized Manufacturing Process Fully Ground Material HSS Sizes 0.2mm~20mm Point Angle 118 and 135 Split Point Transport Package as Requested Trademark INGLAU Origin China HS Code 82975090 Production Capacity 50, 000, 000PCS/Month

Product Description

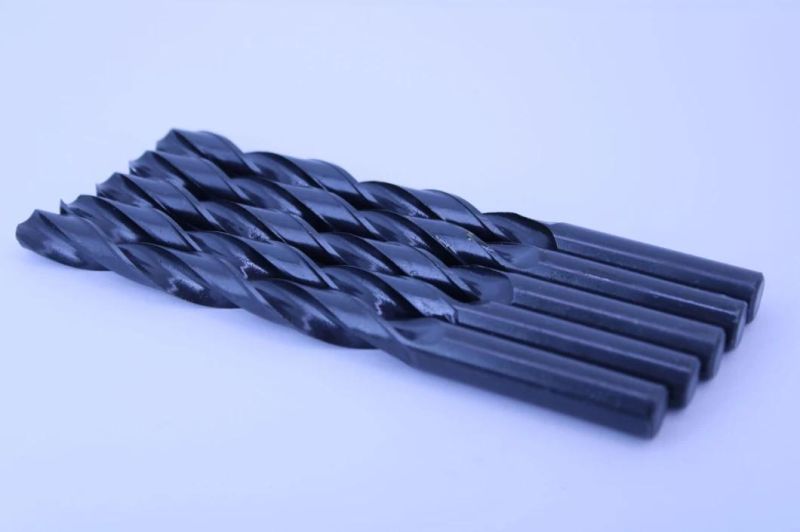

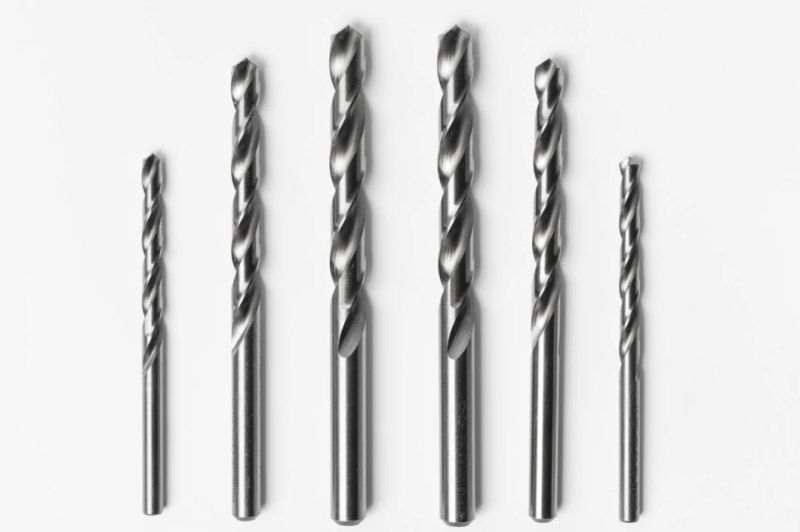

HSS Straight Shank Twist Drill -DIN338

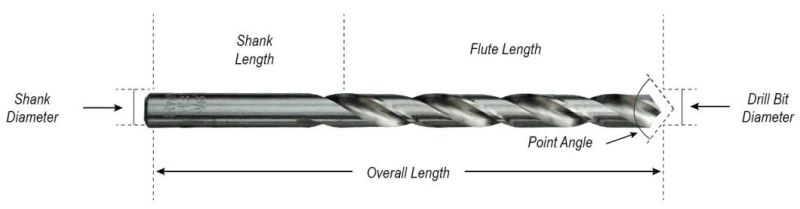

D Diameter

L1 Overall Length

L2 Flute Length

D	L1	L2		D	L1	L2		D	L1	L2
0.20	19	2.5		4.70	80	47		10.00	133	87
0.25	19	3		4.80	86	52		10.10	133	87
0.30	19	3		4.90	86	52		10.20	133	87
0.35	19	4		5.00	86	52		10.30	133	87
0.40	20	5		5.10	86	52		10.40	133	87
0.45	20	5		5.20	86	52		10.50	133	87
0.50	22	6		5.30	86	52		10.60	133	87
0.55	24	7		5.40	93	57		10.70	142	94
0.60	24	7		5.50	93	57		10.80	142	94
0.65	26	8		5.60	93	57		10.90	142	94
0.70	28	9		5.70	93	57		11.00	142	94
0.75	28	9		5.80	93	57		11.10	142	94
0.80	30	10		5.90	93	57		11.20	142	94
0.85	32	11		6.00	93	57		11.30	142	94
0.90	32	11		6.10	101	63		11.40	142	94
0.95	34	12		6.20	101	63		11.50	142	94
1.00	34	12		6.30	101	63		11.60	142	94
1.10	36	14		6.40	101	63		11.70	142	94
1.20	38	16		6.50	101	63		11.80	142	94
1.30	40	18		6.60	101	63		11.90	151	101
1.40	40	18		6.70	101	63		12.00	151	101
1.50	43	20		6.80	109	69		12.10	151	101
1.60	43	20		6.90	109	69		12.20	151	101
1.70	46	22		7.00	109	69		12.30	151	101
1.80	46	22		7.10	109	69		12.40	151	101
1.90	46	24		7.20	109	69		12.50	151	101
2.00	49	24		7.30	109	69		12.60	151	101
2.10	49	24		7.40	109	69		12.70	151	101
2.20	53	27		7.50	109	69		12.80	151	101
2.30	53	27		7.60	117	75		12.90	151	101
2.40	57	30		7.70	117	75		13.00	151	101
2.50	57	30		7.80	117	75		13.10	151	101
2.60	57	30		7.90	117	75		13.20	151	101
2.70	61	33		8.00	117	75		13.30	160	108
2.80	61	33		8.10	117	75		13.40	160	108
2.90	61	33		8.20	117	75		13.50	160	108
3.00	61	33		8.30	117	75		13.60	160	108
3.10	65	36		8.40	117	75		13.70	160	108
3.20	65	36		8.50	117	75		13.80	160	108
3.30	65	36		8.60	125	81		13.90	160	108
3.40	70	39		8.70	125	81		14.00	160	108
3.50	70	39		8.80	125	81		14.50	169	114
3.60	70	39		8.90	125	81		15.00	169	114
3.70	70	39		9.00	125	81		15.50	178	120
3.80	75	43		9.10	125	81		16.00	178	120
3.90	75	43		9.20	125	81		16.50	184	125
4.00	75	43		9.30	125	81		17.00	184	125
4.10	75	43		9.40	125	81		17.50	191	130
4.20	75	43		9.50	125	81		18.00	191	130
4.30	80	47		9.60	133	87		18.50	198	135
4.40	80	47		9.70	133	87		19.00	198	135
4.50	80	47		9.80	133	87		19.50	205	140
4.60	80	47		9.90	133	87		20.00	205	140
