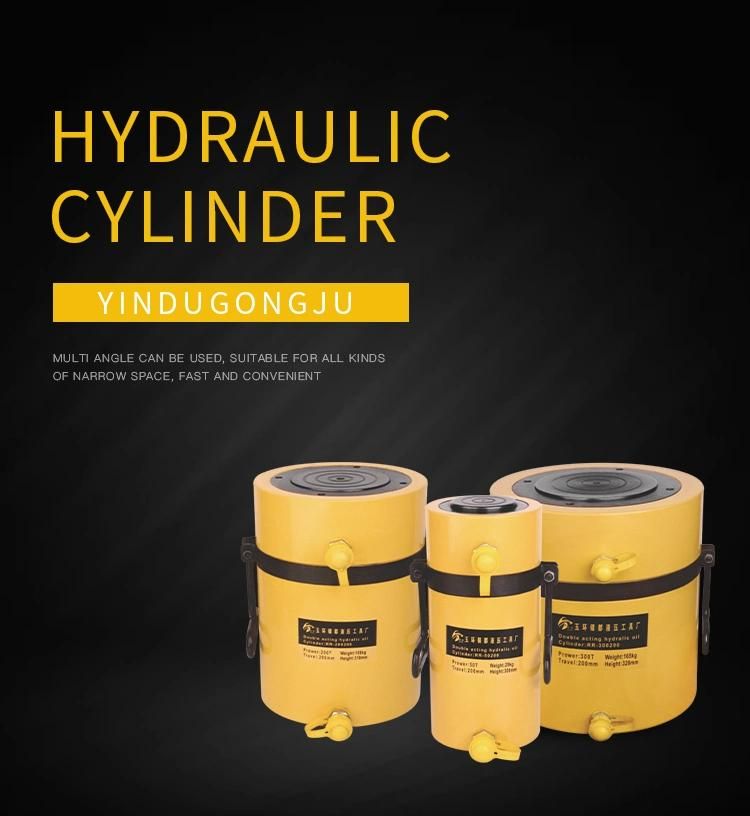

500t 200mm Heavy Duty Double Acting Hydraulic Jack (RR-500200)
TAIZHOU YINDU TOOLS CO., LTD.- Transport Package：Wooden Box
- Specification：CE
- Trademark：yindu
- Origin：China
Base Info
- Model NO.：RR-500200
- HS Code：84122100
- Production Capacity：1000 Sets Per Month
Description

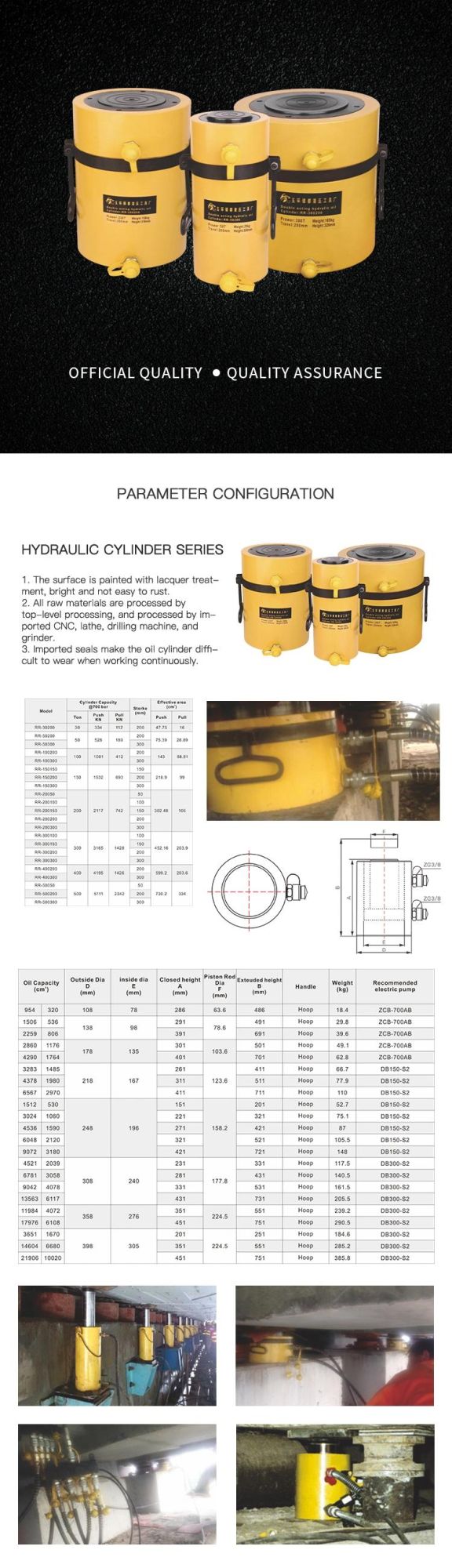

Heavy duty double acting hydraulic jackModel Output (T) Output DIA (MM) Inner DIA (MM) Stroke (mm) Closed Height (mm) Weight (KG) Pump Suggest RR-150150 150 217 170 150 270 65 ZCB-700AB RR-200150 200 248 196 150 270 80 ZCB-700AB RR-300150 300 309 240 150 280 137 ZCB-700AB RR-30200 30 109 80 200 286 20 ZCB-700AB RR-50200 50 139 100 200 290 32 ZCB-700AB RR-100200 100 179 135 200 301 52 ZCB-700AB RR-150200 150 218 170 200 320 78 ZCB-700AB RR-200200 200 248 196 200 320 108 ZCB-700AB RR-300200 300 309 240 200 330 167 ZCB-700AB RR-500200 500 396 305 200 348 330 ZCB-700AB RR-50300 50 139 100 300 390 42 ZCB-700AB RR-100300 100 179 135 300 400 66 ZCB-700AB RR-200300 200 248 196 300 420 148 ZCB-700AB RR-300300 300 309 240 300 430 225 ZCB-700AB RR-500300 500 396 305 300 450 426 ZCB-700AB
1. Light weight, easy to carry.
2. Baked enamel finish for increased corrion resistance.
3. All the raw material special heating treatment and processed by imported CNC lathes.
4. Imported high quality seals to provide better protection to the cylinder, making the cylinder not easy to wear out.

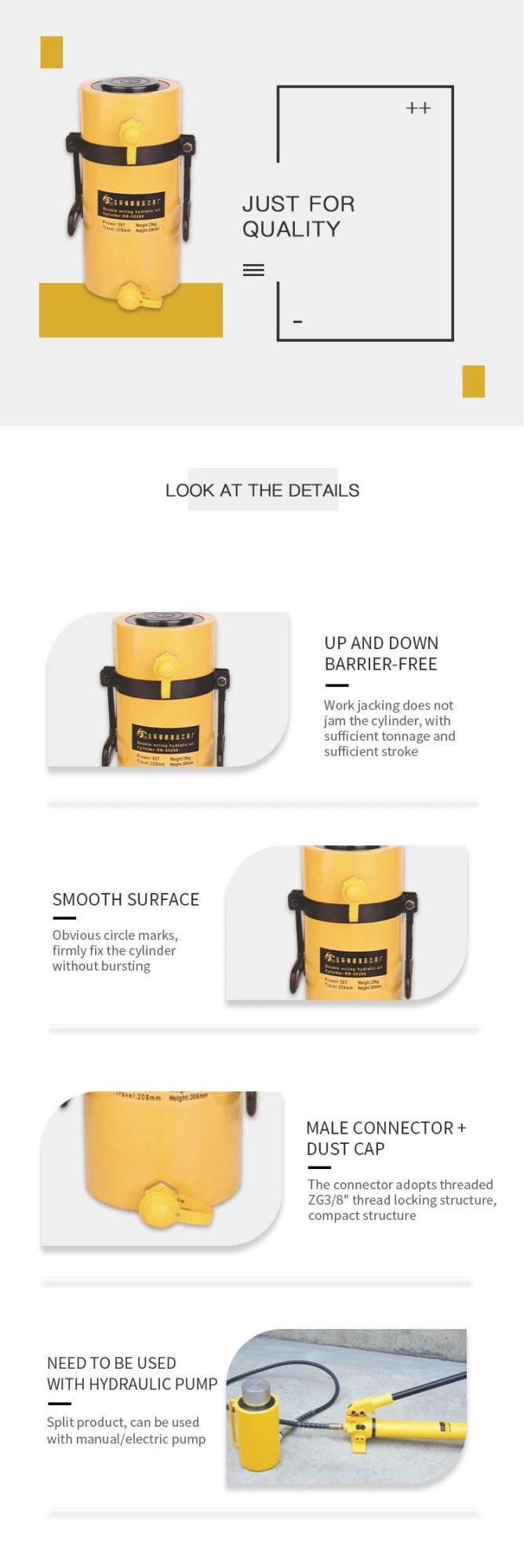

Features and Functions:
1. Double acting. Hydraulic return
2. Baked enamel finish for increased corrosion resistance.
3. Built-in safety valve prevents accidental over-pressurixation.
4. Be equipped with double-loop pump to run.
5. RR cylinder is the best solution to premise controlled heavy loads.
6. Replacing adjustment rolls under a fly-over with RR cylinders, for controlled lifting an lowering operation.
1. Light weight, easy to carry.
2. Baked enamel finish for increased corrion resistance.
3. All the raw material special heating treatment and processed by imported CNC lathes.
4. Imported high quality seals to provide better protection to the cylinder, making the cylinder not easy to wear out.
Features and Functions:
1. Double acting. Hydraulic return
2. Baked enamel finish for increased corrosion resistance.
3. Built-in safety valve prevents accidental over-pressurixation.
4. Be equipped with double-loop pump to run.
5. RR cylinder is the best solution to premise controlled heavy loads.
6. Replacing adjustment rolls under a fly-over with RR cylinders, for controlled lifting an lowering operation.
