• Model NO.：SV11NS series
• Market：Global
• OEM：Yes
• Color：Customized
• Structure：Epicyclic Gear
• Transport Package：Standard Export Wooden Case
• Specification：CE, ISO9001, SGS
• Trademark：SOV
• Origin：Shanghai, China
• HS Code：8467890000
• Production Capacity：500 Sets Per Month

Basic Info.

Model NO. SV11NS series Market Global OEM Yes Color Customized Structure Epicyclic Gear Transport Package Standard Export Wooden Case Specification CE, ISO9001, SGS Trademark SOV Origin Shanghai, China HS Code 8467890000 Production Capacity 500 Sets Per Month

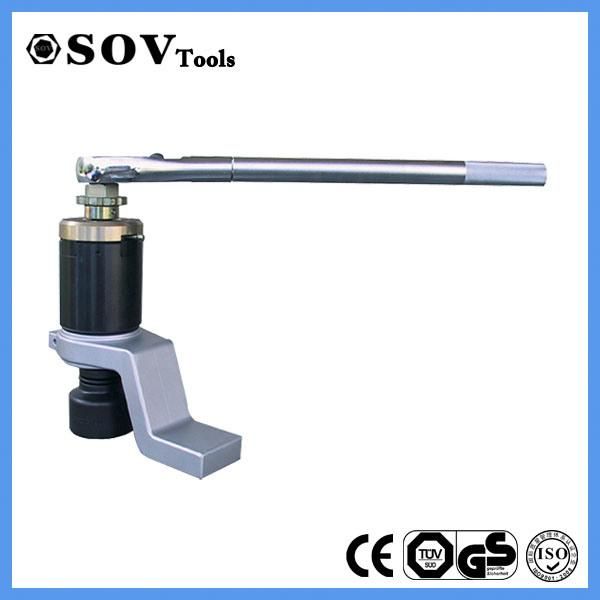

Product Description

Feature
1. Mechanical torque multiplier could be widely used with many other power tools and applicable for the anti-explosion environment.
2. It has high precision and reduction ratio as well as the planetary gear structure and anti-reverse structure.
3. The high-tech alloy material planetary gear is used for it, with compact structure, high strength, well abrasive resistance and light weight.
4. All the machine parts are finished through CNC machining center, which can ensure the consistency of the products.
5. The feature of high quality and maintenance-free saves the maintenance time and cost.

Product Parameter

Model	Torque (Nm)	Square head size	Magnification ratio	Diameter (mm)	Height (mm)	Weight (Kg)
SV11NS150	1500	3/4"	4	85	180	3.5
SV11NS200	2000	1"	4	85	200	4
SV11NS350	3500	1"	16	85	235	6
SV11NS500	5000	1-1/2"	18	98	250	7
SV11NS600	6000	1-1/2"	20	123	280	15
SV11NS800	8000	1-1/2"	24	148	280	16
SV11NS1100	11000	1-1/2"	28	175	290	28
SV11NS5000	50000	2-1/2"	180	275	360	55

Packaging Details
1. Outside packaging: Standard export wooden packing;
2. Inner packaging: Stretch Film;
3. Customized packaging acceptable.

Shipping
1. Small quantity: By international exress, such as DHL, TNT, FEDEX, UPS, etc. Depending on the customers' choice. Goods will arrive within 7 days in normal cicumstances;
2. Large quantity: By sea transportation. Goods will arrive in 30~45 days, according to the diatance.

Our Service
1.24 hours online service;
2. One year warranty, repair and service for the whole life.
3. Question report will be replied in 48 hours.
4. Quality guaranteed.

Company Information
SOV Hydraulic Technoloy (Shanghai) Co., Ltd. Is a manufacturer engaged in designing and manufacturing hydraulic cylinders, synchronous PLC hydraulic system, hydraulic pumps, torque wrenches, and hydraulic components.


Certificate
Since the establishment in 1995, we successfully transformed from OEM manufacturer for many international brands to create our own brand SOV, and our factory has been approved by CE, ISO9001: 2008 consecutively.


Our customers includ many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

Our products include:
Hydraulic cylinders, jacks (5-1000ton);
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM);
Hydraulic pullers (5-100 ton);
Integrated hydraulic lifting system solutions;
Hydraulic parts.

Competitive Advantages
1. High quality in competitive price;
2. Low minimun order quantity;
3. Wide range of products for your reference;
4. Good customer service: Customer satisfaction is our promary goal. Prompt, professional service offered by passionate and patient international salespeople.
5. OEM services: Customer's LOGO engraving, customized packaging, and produce the products according to customers' design, etc.

Best wishes for you! !
