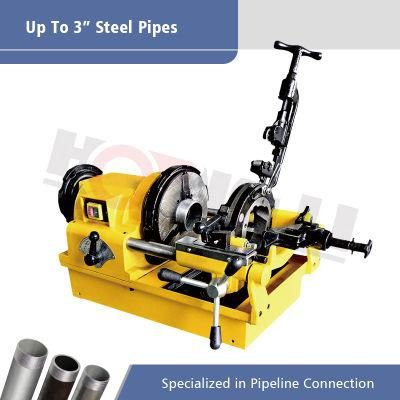

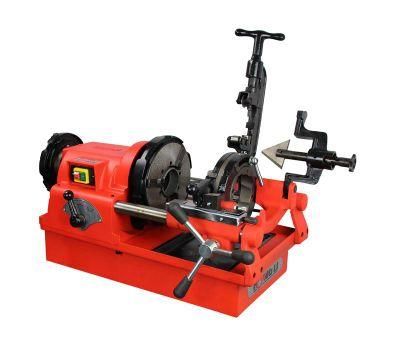

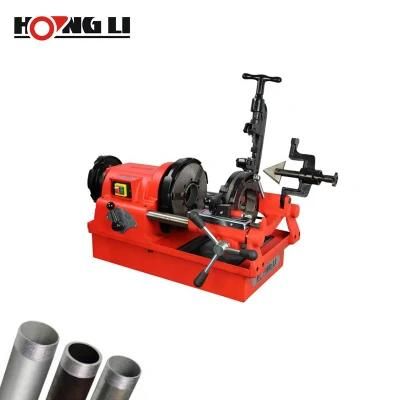

Portable Pipe Threading Machine Photo 3" (SQ80D1)
Hangzhou Hongli Pipe Machinery Co., Ltd.- Bolt Die Type：NPT , BSPT
- Bolt Die Material：Tool Steel
- Bolt Die Size：1,2"-3"
- Model：3 inch
- Type：Heavy

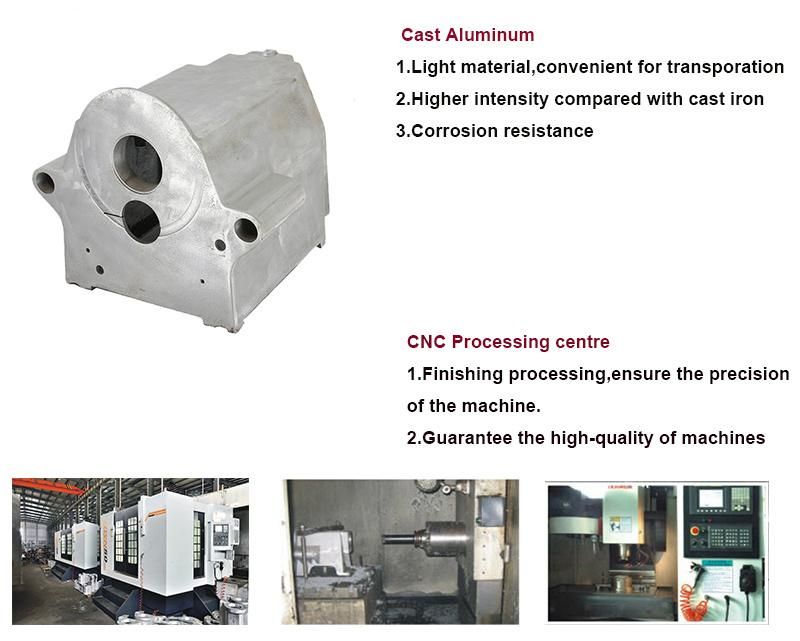

- Gear Housing：Die Cast Aluminum
Base Info
- Model NO.：SQ80D1
- Die Heads：Auto Tyoe
- Product Name：Ratchet Pipe Threader
- Categories：Threading Machines for 3" Pipes
- Transport Package：Carton Case
- Specification：94*60*62 cm
- Trademark：Hongli
- Origin：Zhengjiang China
- HS Code：8459700000
- Production Capacity：1000
Description
Technical SpecificationsMotor: 750W induction,50/60 Hz Rear Centering Device: Cam action Switch: * ON/OFF heavy duty switch,
* Foot switch and FOR/OFF/REV switch is optional Oiling System: Through die head, with integral oil reservoir Threading Capacity: 1/2"-3" Spindle Speed: 26/11RPM Oil Pump: Self-priming constant flow Front Chuck: Hammer type with replaceable rocker action jaw inserts N.W.: 140kg
Ordering Information:
Standard Spare parts of SQ80D1 Pipe threader:

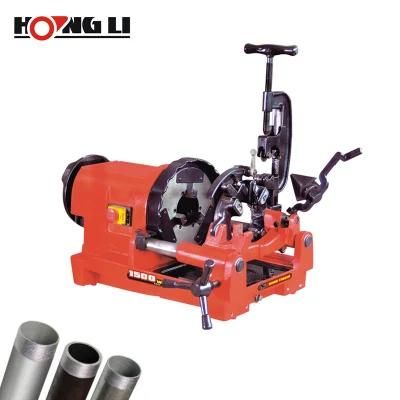

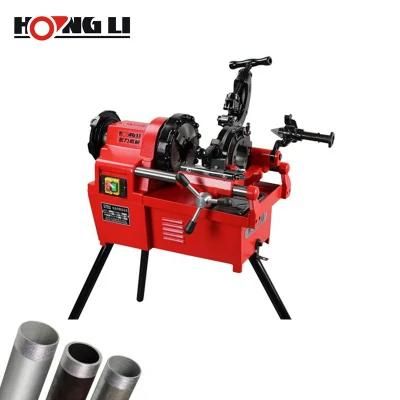

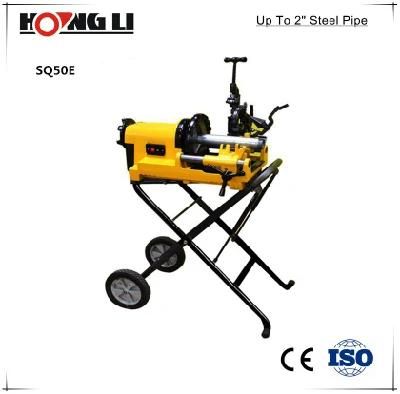

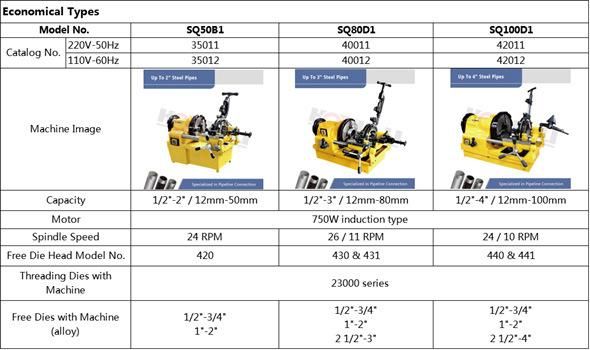

Related product:
Packing & Delivery
* Foot switch and FOR/OFF/REV switch is optional
Ordering Information:
| Catalog.No. | Model No. | Description | Spindle Speed RPM | Pipe Threading Capacity | N.W.:(KG) |
| 40014 | SQ80D | 110V, 60Hz | 26/11 | 1/2"-3"(12mm-80mm) | 140 |
| 40013 | SQ80D | 220V, 50Hz | 26/11 | 1/2"-3"(12mm-80mm) | 140 |

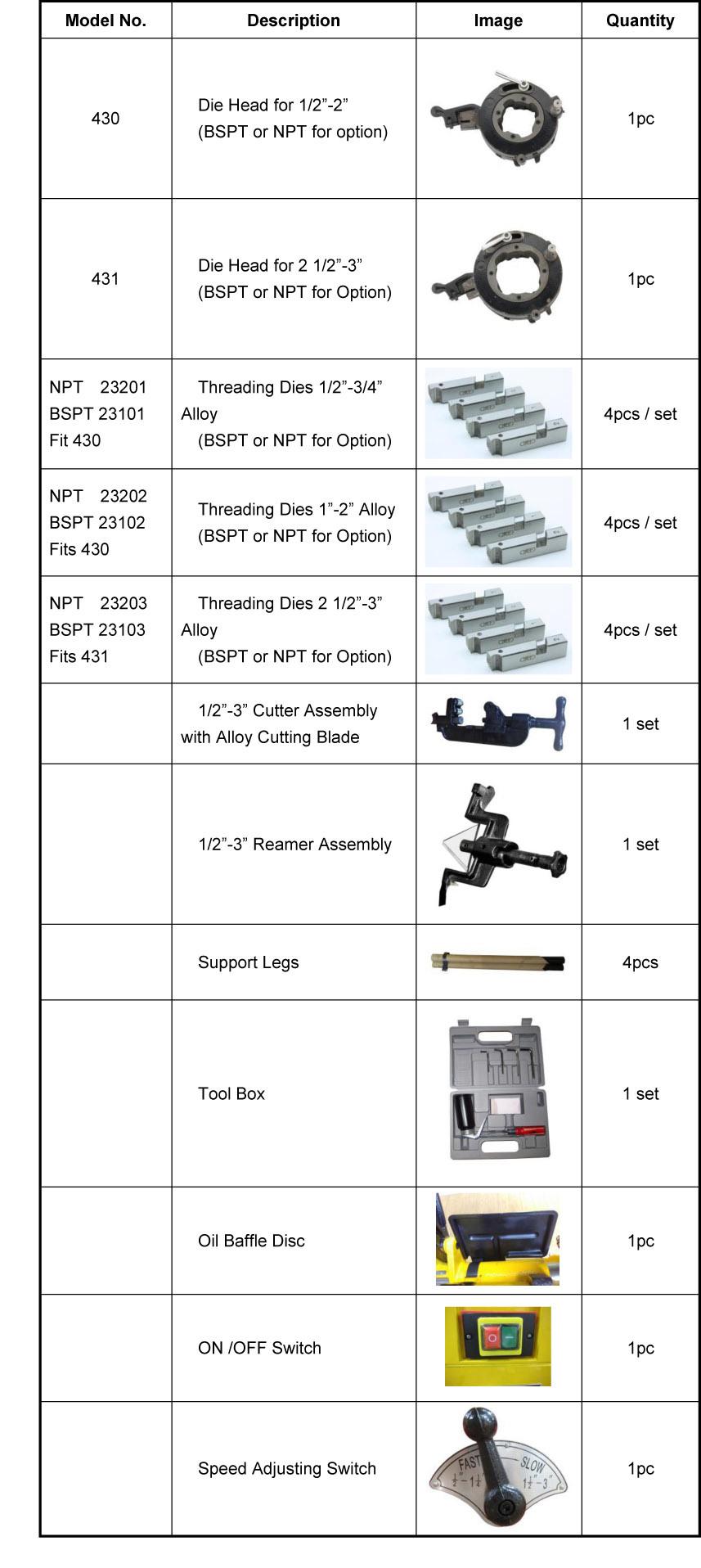

Standard Spare parts of SQ80D1 Pipe threader:
We are developing all kinds of threading machine .In order to make our machines meet the requirements from different counties
Some spare parts of our machine can interchange with that of RIDGID, ROTHENBERGER, REX, ASADA , REMS, EGAMASTER tools.

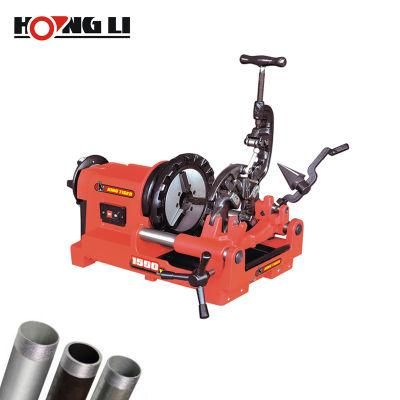

Related product:
Packing & Delivery
| Model No. | G.W | N.W. | Packing |
| SQ80D1 Threading Machine | 121kgs | 100kgs | 94*60*62 cm. |
