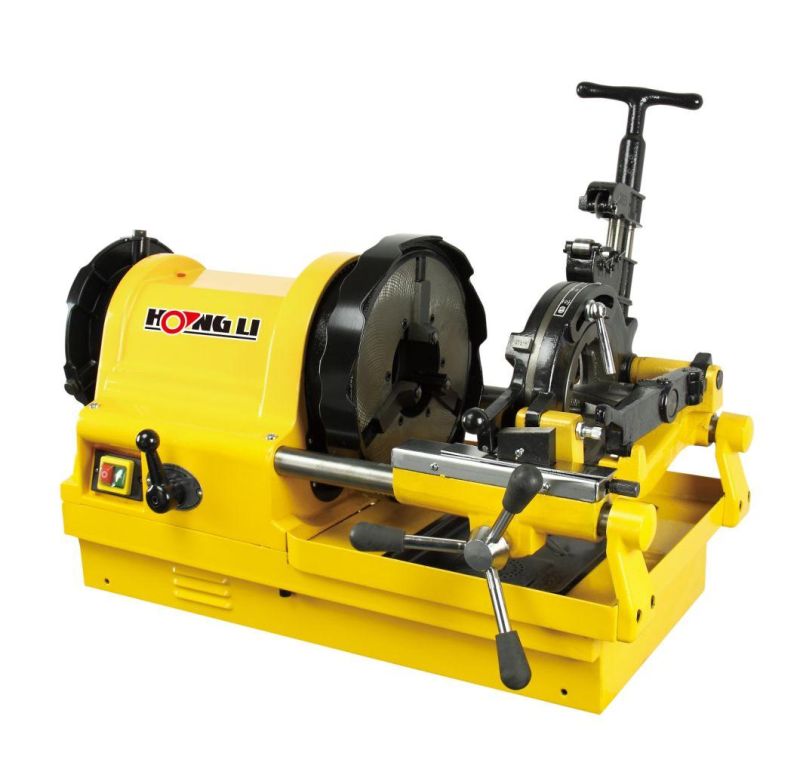

Cheapest 4inch Pipe Thread Machine (SQ100D1)

Hangzhou Hongli Pipe Machinery Co., Ltd.
  • Bolt Die Type：NPT , BSPT
  • Bolt Die Material：Tool Steel
  • Bolt Die Size：1,2"-4"
  • Model：4 inch
  • Type：Heavy
  • Gear Housing：Die Cast Aluminum

Base Info

  • Model NO.：SQ100D1
  • Die Heads：Quick-Open
  • Product Name：Ratchet Pipe Threader
  • Categories：Threading Machines for 4" Pipes
  • Transport Package：Carton Case
  • Specification：100*70*63 cm
  • Trademark：Hongli
  • Origin：Zhengjiang China
  • HS Code：8459700000
  • Production Capacity：1000

Description

Technical SpecificationsMotor:750W induction,50/60 HzRear Centering Device:Cam actionSwitch:* ON/OFF heavy duty switch,
* Foot switch and FOR/OFF/REV switch is optionalOiling System:Through die head, with integral oil reservoirCasting: AluminumThreading Capacity: 1/2"-4"Spindle Speed:24/10 RPMOil Pump:Self-priming constant flowFront Chuck:Hammer type with replaceable rocker action jaw insertsN.W.:140kg


HS Code of SQ100D1 Electric Pipe Threading Machine: 8459700000


Cheapest 4inch Pipe Thread Machine (SQ100D1)

Cheapest 4inch Pipe Thread Machine (SQ100D1)Cheapest 4inch Pipe Thread Machine (SQ100D1)
Ordering Information:
Catalog.No.Model No.DescriptionSpindle Speed RPMPipe Threading CapacityN.W.:(KG)
42012SQ100D1110V, 50/60Hz24/101/2"-4"(12mm-100mm)140
42011SQ100D1220V, 50/60Hz24/101/2"-4"(12mm-100mm)140

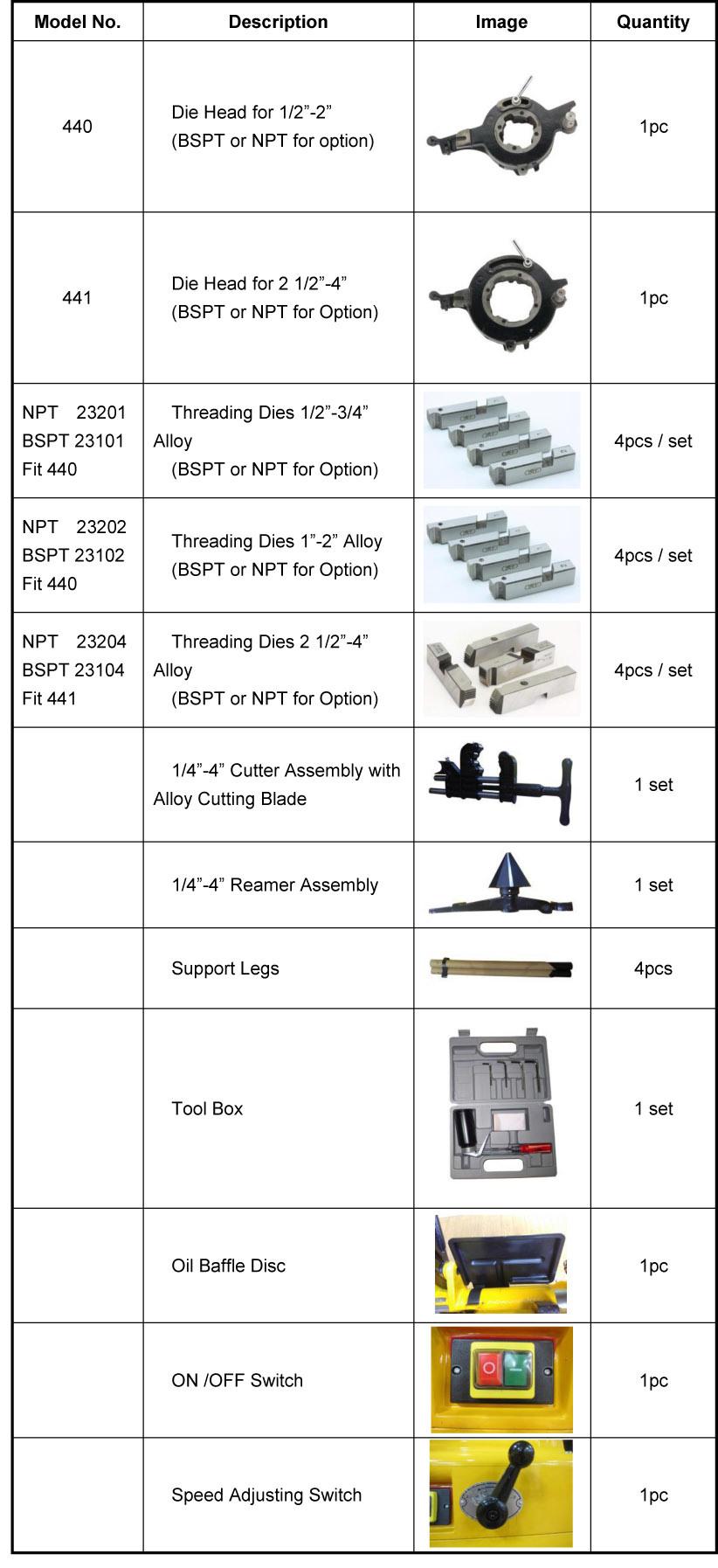

Standard Spare parts of SQ100D1 Pipe threader:
Cheapest 4inch Pipe Thread Machine (SQ100D1)

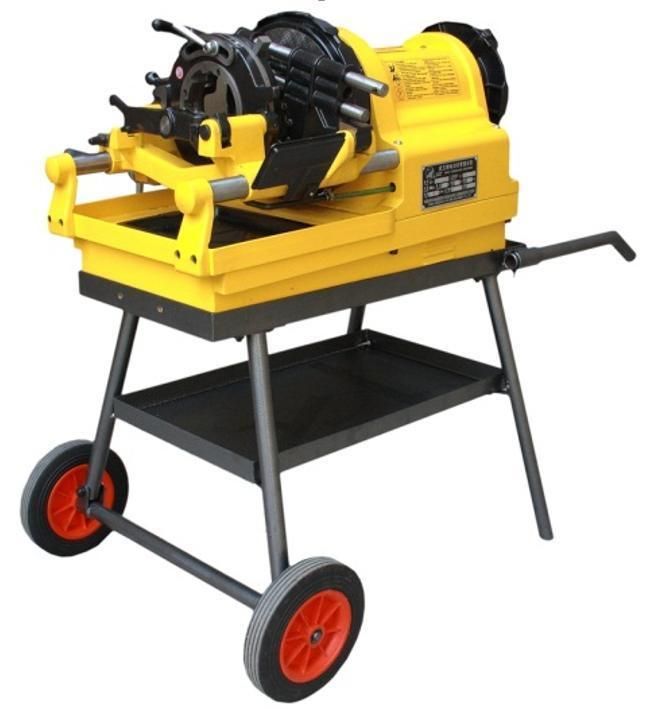

Wheel Stand: Ridgid type Folding wheel stand is optional:
Cheapest 4inch Pipe Thread Machine (SQ100D1)
We are developing all kinds of threading machine .In order to make our machines meet the requirements from different counties
Some spare parts of our machine can interchange with that of  RIDGID, ROTHENBERGER, REX, ASADA , REMS, EGAMASTER tools.

Cheapest 4inch Pipe Thread Machine (SQ100D1)
Related products:
Cheapest 4inch Pipe Thread Machine (SQ100D1)

Packing & Delivery:

Cheapest 4inch Pipe Thread Machine (SQ100D1)

Model No.G.WN.W.Packing
SQ100D1 Threading Machine166kgs140kgs94*60*62cm

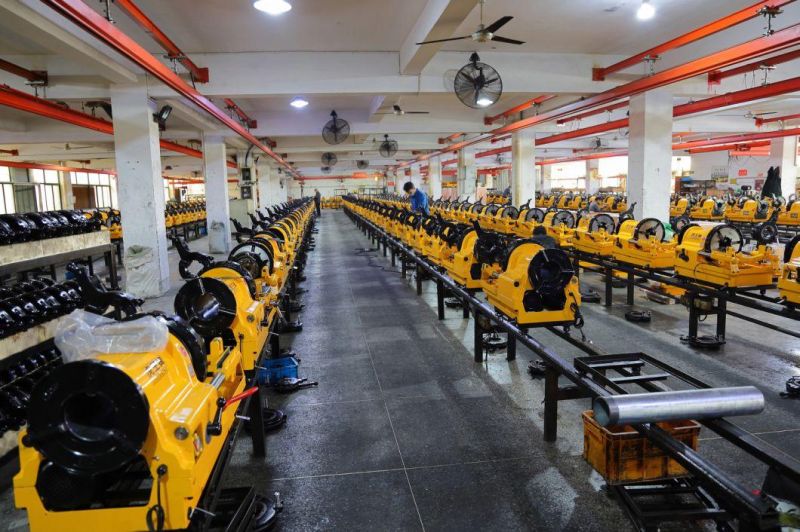

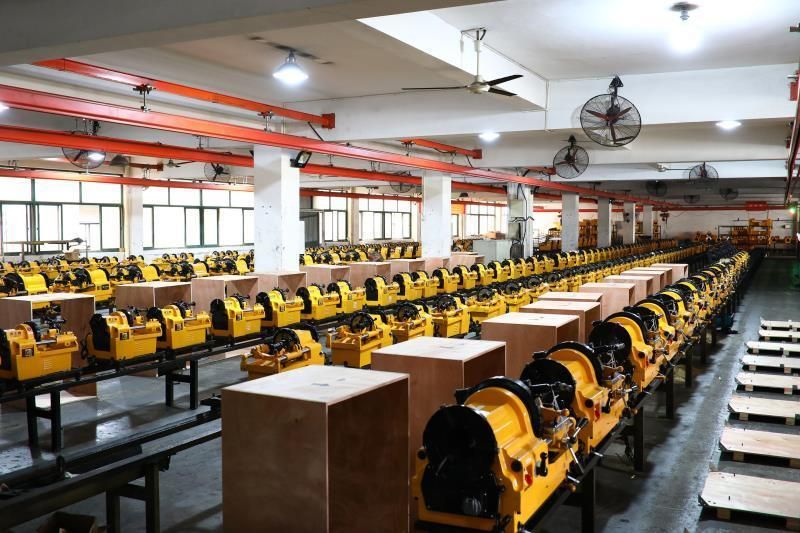

Work Shop:
Hongli High Class Super Quality 4 Inch Pipe Threading Machine Ridgid Type Pipe Threader Factory Price
Our Company:
Hangzhou Tigerking Pipe Machinery Import and Export Co., Ltd. is a subsidiary company of Hangzhou Hongli Group, specializing in designing and manufacturing pipe tools.
Hangzhou Hongli Group has three companies, Hangzhou Hongli Pipe Machinery Co., Ltd. and Hangzhou Huaxing Machinery Co., Ltd.,Hangzhou Tigerking Pipe Machinery Import and Export Co., Ltd.,covering a production area of 25,000 square meters with more than 250 staff members including 15 engineers.
Our company was established in 1986. After years of hard work, our company has been one of the leading manufacturers of pipe tools in China. Our main products include threading machines, core drills, roll groovers, pipe cutters, pipe benders, drain cleaning machines, pressure testing pumps and hole cutting tools. More than 40,000 sets of threaders are available.
Our company keeps developing new products and improving production technology to ensure quality products. The control of quality is the first mission for our company to ensure the best products and service.
In the spirit of "good service for clients", we source power tools, hand tools, and automotive tools from partner factories in China.
We hope to cooperate with all of our old and new clients.
Hongli High Class Super Quality 4 Inch Pipe Threading Machine Ridgid Type Pipe Threader Factory Price
