• Model NO.：HX-001
• Hardness：Soft
• Load-Bearing：>6 Kg
• Color：White
• Printing Process：Heat Transfer
• Transport Package：Each Roll Is Wrapped with a Woven Bag with Label
• Specification：CE SGS
• Trademark：HONGXIANG
• Origin：Made in China
• HS Code：3926909090
• Production Capacity：50000m2week

Voltage: 220VFrequency: 50/60Hz Power: 800WWelding speed:                                       0.5-5m/min                                             Heating temp: 0-450°C Thickness of material: 0.2mm-1.5mm Overlap width:10cm Welding width: 12.5mm×2, interior cavity 12mm Seam strength: ≥85% base material (tensile resistant in shear direction) Weight:5kgs Insulation class:class II usagePP film welding machine Applications:
1.Railway/ highway subway tunnel waterproof construction;
2.Water conservancy projects, man-made landscape;
3.Riverbank, aquaculture farm;
4..Refuse landfill, sewage treatment;
5.Chemical,mining industry;
6.Construction waterproofing projects.

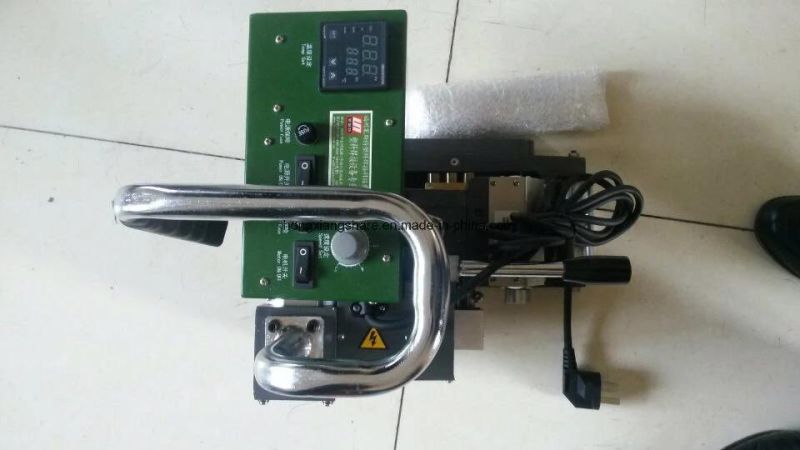

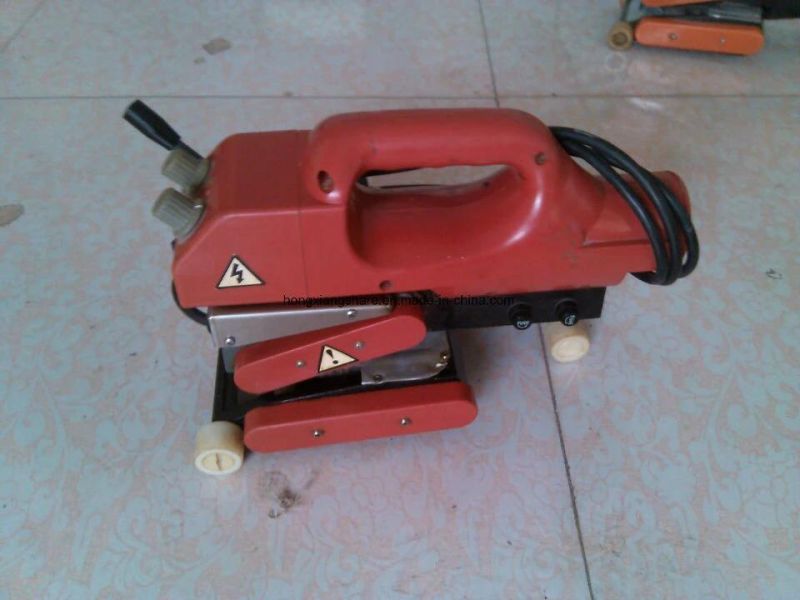

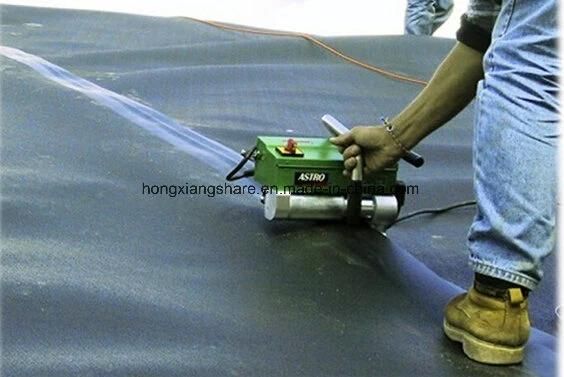

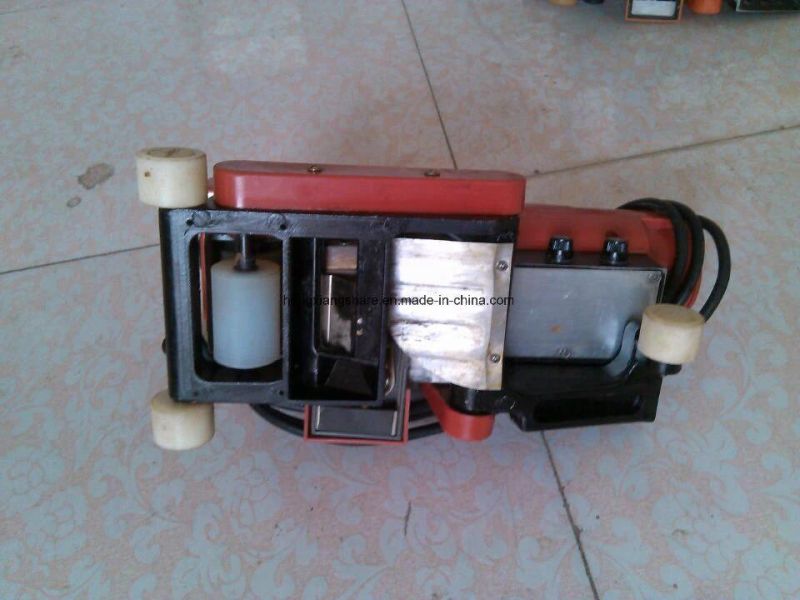

geomembrane welding machine description:

The control of this series of welding machine adopts PID automatic thermostatic control with high

control accuracy and low temperature fluctuation; speed control adopts PWM automatic voltage and

speed regulation circuit, driven by DC servo motor, with great output torque and the operating is

stable. It can maintain a constant speed on the condition of creeping, vertical creeping and variable

road load. Also this series of welding machine is stable in performance despite of external

temperature and voltage variation.

It can weld geomembrane of various thickness and are applicable for welding of all thermal-fused

material such as LDPE, PVC, HDPE, EVA, PP and the like.


This series of welding machine is excellent in performance and easy for operating, with high welding

speed and good work quality. It is extensively used in engineering projects such as expressways,


tunnels, reservoirs, waterproof of construction and so on



Voltage (V): 220V

Frequency (Hz): 50Hz
Power (P): 1800W

Welding speed (V): 0.5-5m/min
Heating temperature (T): 0-450°C

Thickness of material to be welded: 1mm-3mm
Overlap width: 120mm

Welding width: 14mm×2, interior cavity 16mm
Seam strength: ≥85% base material (tensile resistant in shear direction), complete machine

Weight: 13Kg

Area	Application of Geosynthetics
Hydraulic	Lagooning and Water Treatment, Ornamental Ponds, Golf Courses Aquaculture and Desalination Water LagoonsTanks, Reservoirs, Liquid WasteFloating Cover SolutionsDrainage and FiltrationShading Cover Solutions
Environment	Tailing ponds, Leach mining,Landfills,Landfill Capping,Protection against corrosion,Vertical Barriers
Civil Works	Erosion Control, Secondary Containment, Tunnels,Linear and Surface Works,Consolidation of Margins,Soil Reinforcement,Soil Separation.
Building	Parkings,Roofing,Soundproofing building
