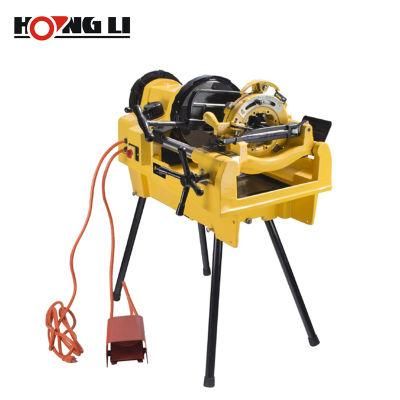

Rotating Pipe Threading Machine 1/8 Inch to 4 Inch (1224)

Hangzhou Hongli Pipe Machinery Co., Ltd.
  • Bolt Die Type：NPT , BSPT
  • Bolt Die Material：Tool Steel
  • Bolt Die Size：1,4"-4"
  • Model：4 inch
  • Type：Heavy

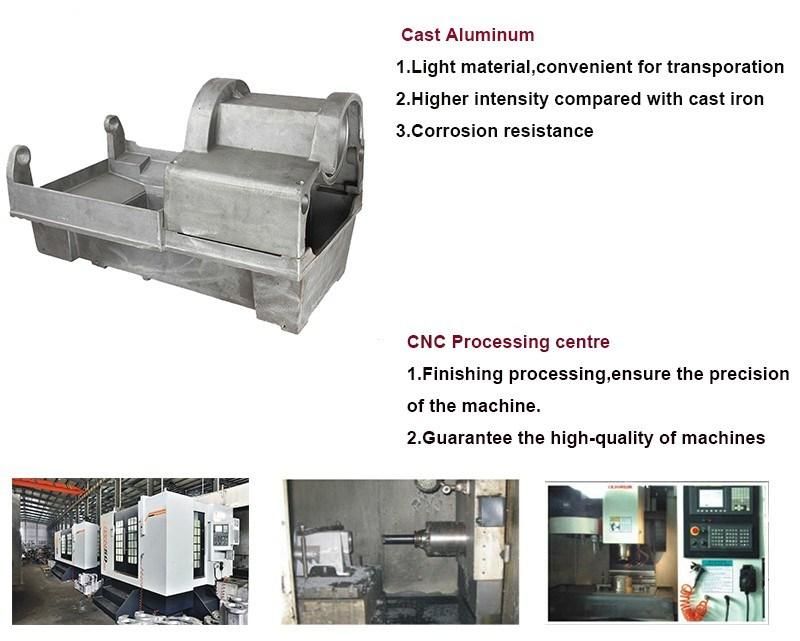

  • Gear Housing：Die Cast Aluminum

Base Info

  • Model NO.：1224
  • Die Heads：Quick-Open
  • Product Name：Ratchet Pipe Threader
  • Categories：Threading Machines for 4" Pipes
  • Transport Package：Carton Case
  • Specification：92*70*66CM
  • Trademark：Hongli
  • Origin：Zhengjiang China
  • HS Code：8459700000
  • Production Capacity：1000

Description

Technical SpecificationsMotor:1500W induction,50/60 HzRear Centering Device:Cam actionSwitch:* ON/OFF heavy duty switch,
* Foot switch and FOR/OFF/REV switch is optionalOiling System:Through die head, with integral oil reservoirCasting: AluminumThreading Capacity: 1/4"-4"Spindle Speed:36/20/11 RPMOil Pump:Self-priming constant flowFront Chuck:Hammer type with replaceable rocker action jaw insertsN.W.:150kg
Ordering Information:
Catalog.No.Model No.DescriptionSpindle Speed RPMPipe Threading CapacityRod Threading CapacityN.W.:(KG)
43002SQ100F110V, 60Hz36/20/111/4"-4"(6mm-100mm)M12-M52150
43001SQ100F220V, 50Hz36/20/111/4"-4"(6mm-100mm)M12-M52150

Accessories:

Cat no.Model No.DescriptionWeight
443425Die head, Self-open , 1/4"-2",interchangeable with RIDGID 1224
 444Die head, Self-open, 2 1/2"-4",interchangeable with RIDGID 1224
  Die head, Bolt, Self-open, (standard)
 544Reamer
 642cutter
 42Foot Pedal Switch  (Optional)
4581011819Nipple Chuck  (Optional)

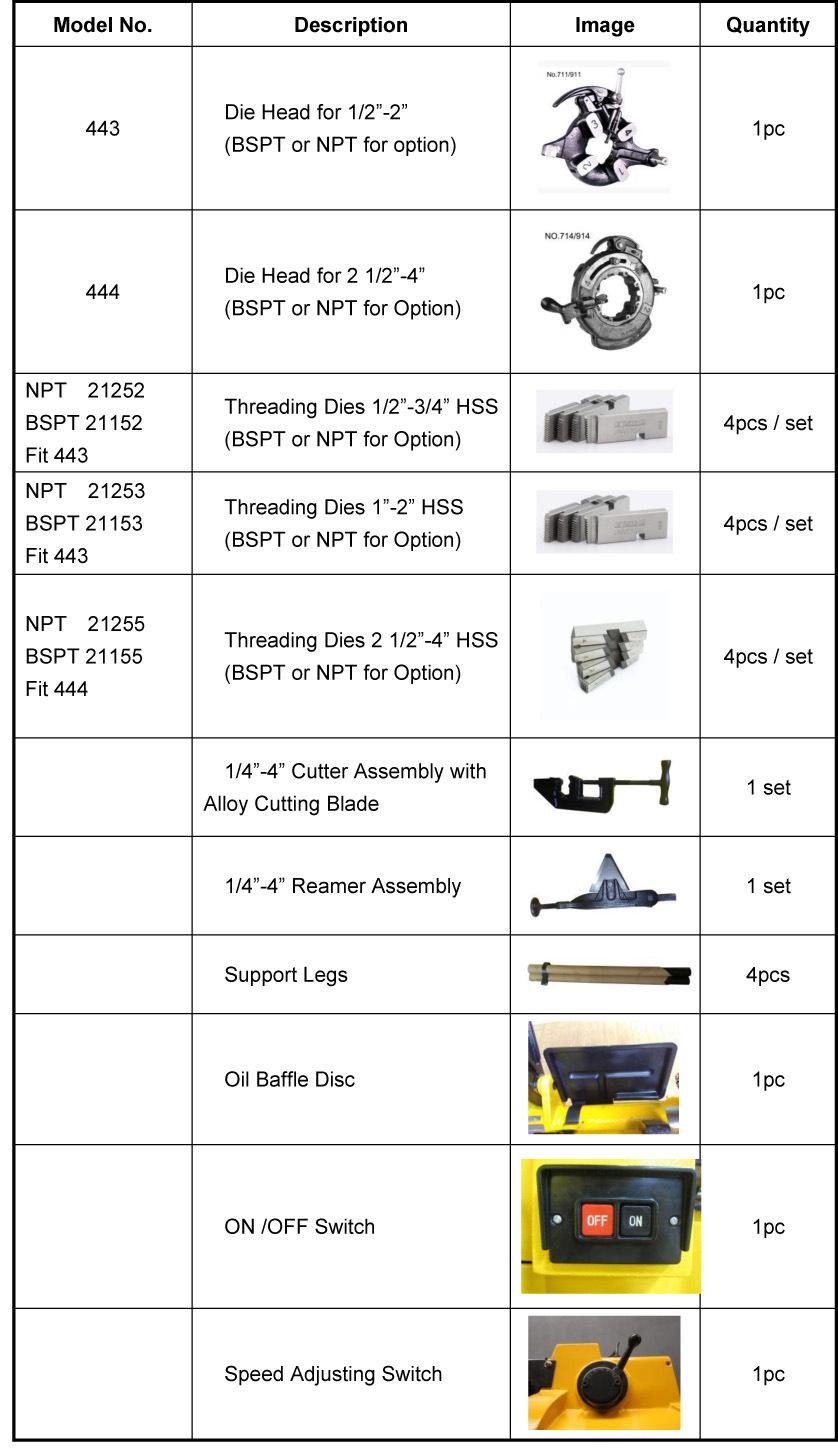

Standard Spare parts of SQ100F Pipe threader
Rotating Pipe Threading Machine 1/8 Inch to 4 Inch (1224)

We are developing all kinds of threading machine .In order to  make our machines meet the requirements from different  counties
Some spare parts of our machine can interchange with that of     RIDGID, ROTHENBERGER, REX, ASADA , REMS, EGAMASTER tools.

Rotating Pipe Threading Machine 1/8 Inch to 4 Inch (1224)

Packing & Delivery

Rotating Pipe Threading Machine 1/8 Inch to 4 Inch (1224)

Model No.G.WN.W.Packing
SQ100F Threading Machine175kgs150kgs92*70*66cm
