PVC Profile Two Head Cutting Machine for PVC Window Processing

JINAN MAG GROUP CO., LTD.
  • Saw Type：Circular Saw
  • Application：PVC Cutting Saw
  • Brand：None
  • Type：Fixed
  • Power Source：Electricity
  • Customized：Non-Customized

Base Info

  • Model NO.：SJZ2-350
  • Condition：New
  • Name：Plastic Cutting Saw Machine
  • Cutting Width：200mm
  • Cutting Length：290-3500mm
  • Cutting Height：100mm
  • Power Supply：380V 50Hz
  • Air Consumption：100L,Min
  • Cutting Angle：45-90degree
  • Transport Package：Plywood Package
  • Specification：4000X1120X1450MM
  • Trademark：MAG
  • Origin：China
  • HS Code：84779000
  • Production Capacity：1000

Description

Overview Product Description

Equipment features:
The machine is used for processing the PVC profiles with angles of 45°-90°

Using linear drive feed,material clamping and cutting the use of pnuematic transmission.

Product Parameters

Main specification and technical parameter:


input power2X1.1kwpower supplyAC380V/50HZair pressure0.5-0.8Mpaair consumption100L/mincutting angle45°-90°

cutting widthXheight:200X100mm

cutting length:450-3500mm

saw blade specification:Φ400XΦ30

overall dimension:4000X1000X1450mm

weight:about 600kg

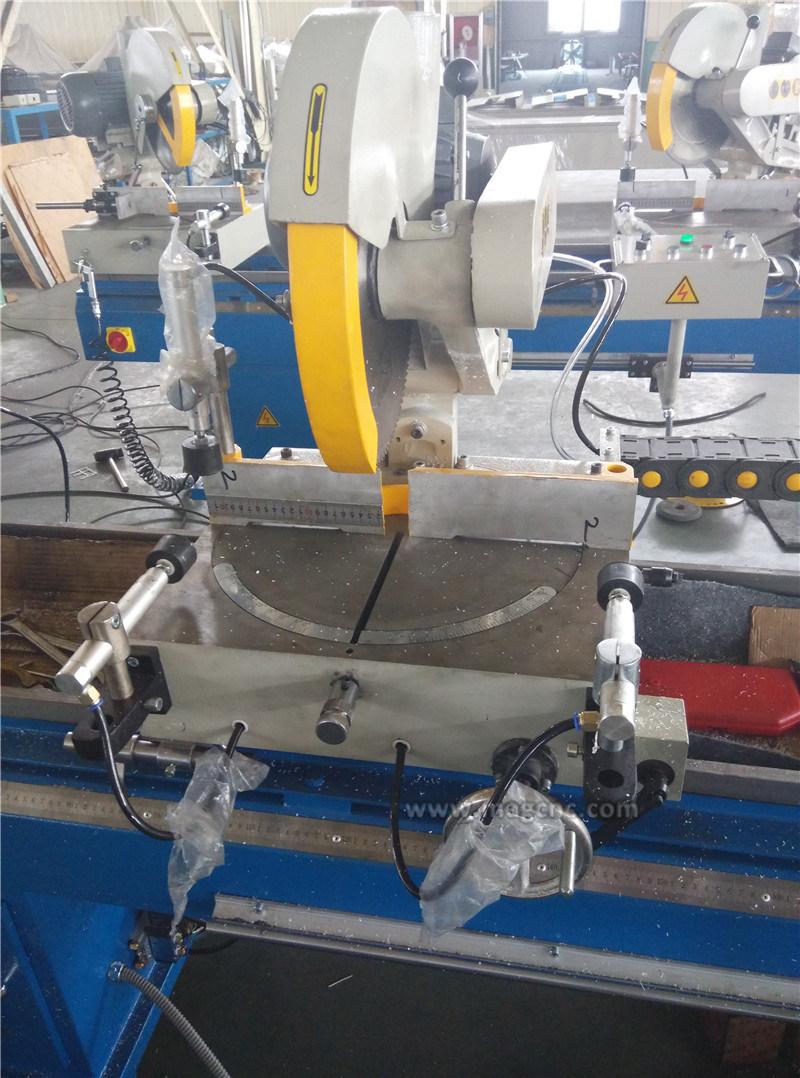

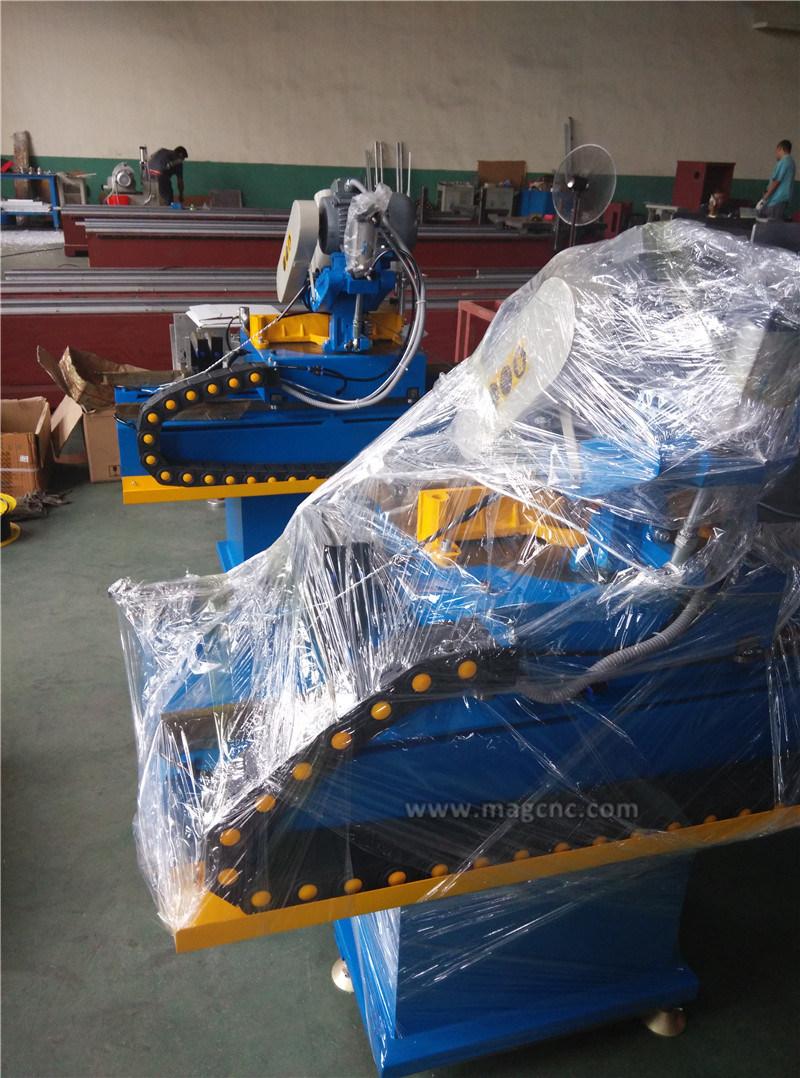

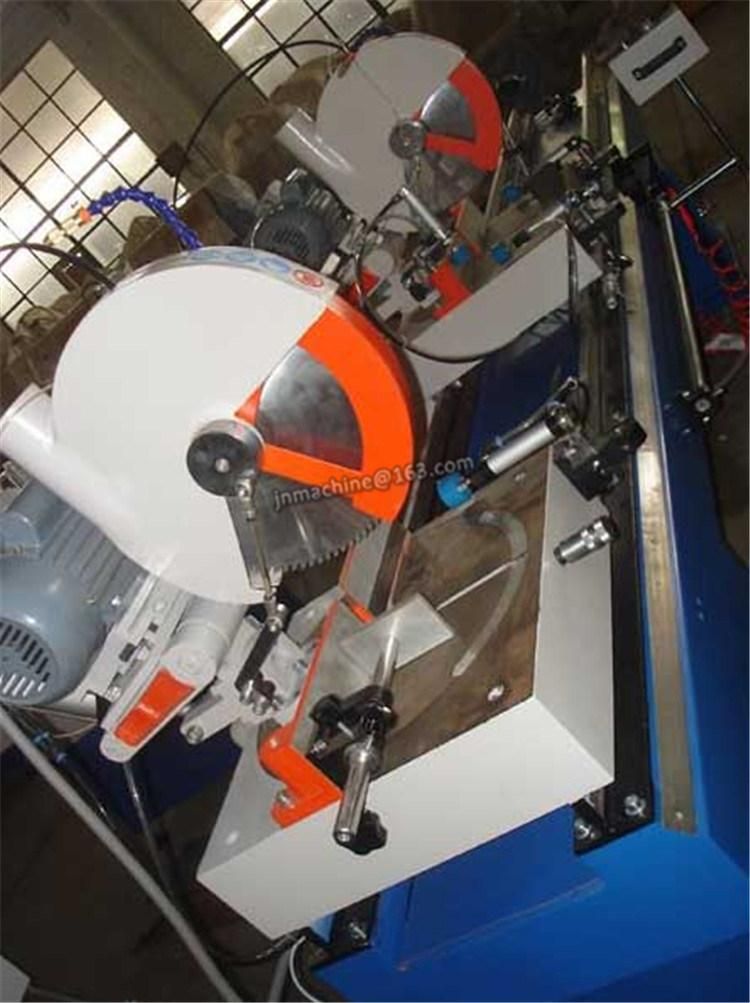

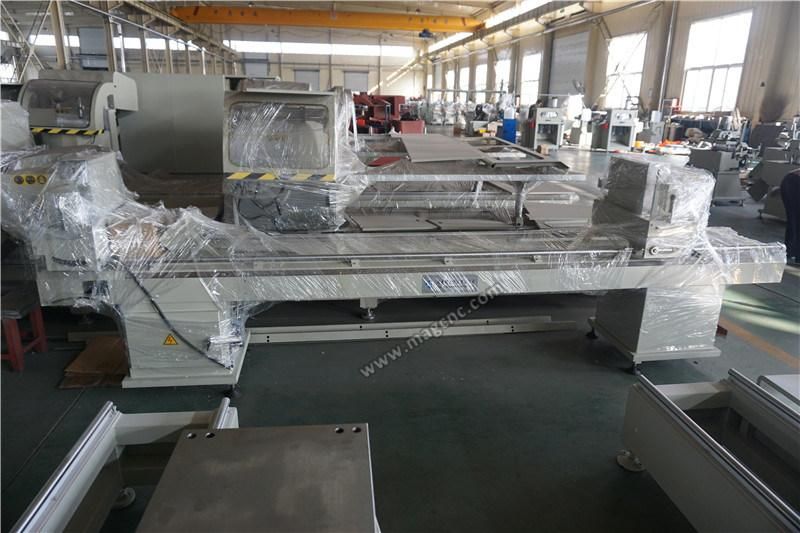

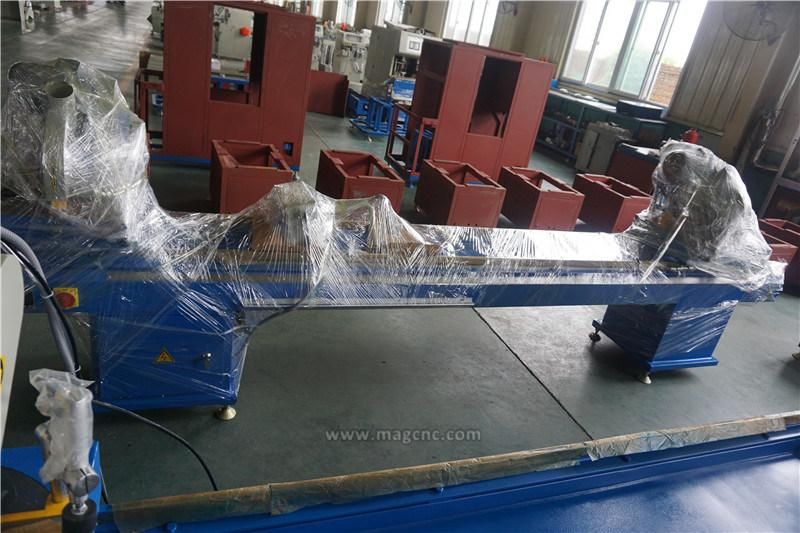

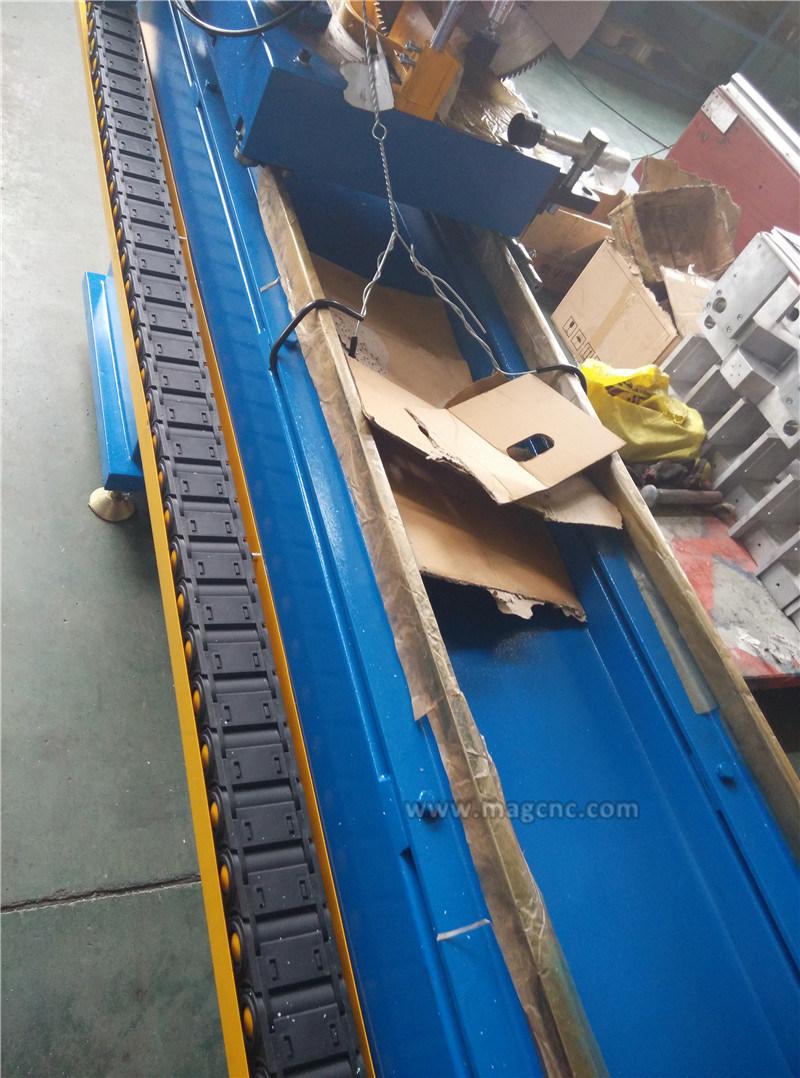

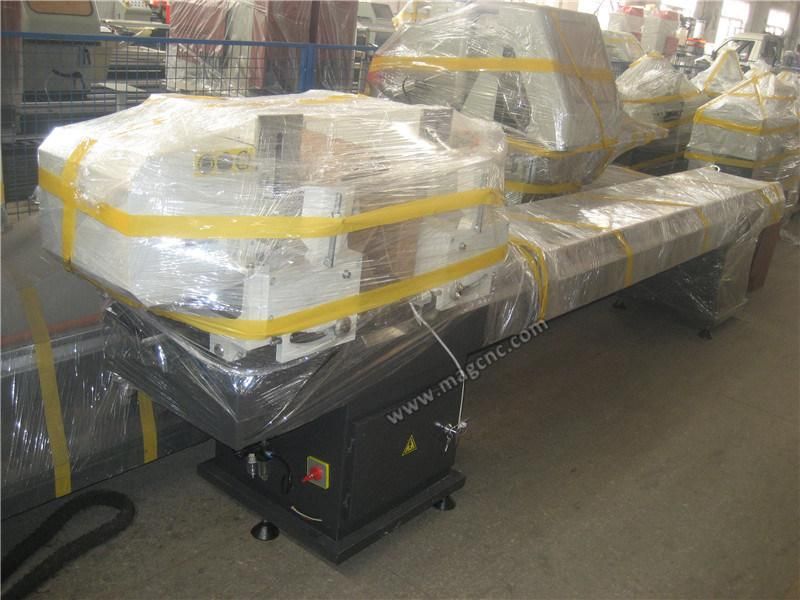

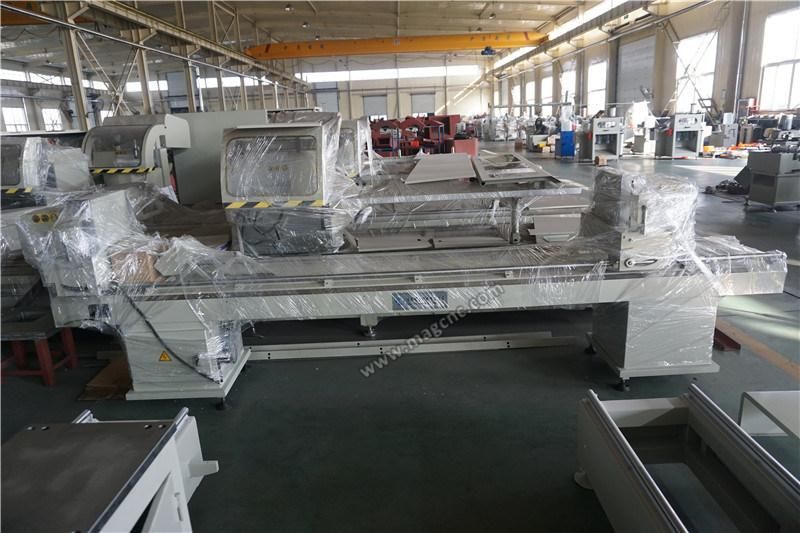

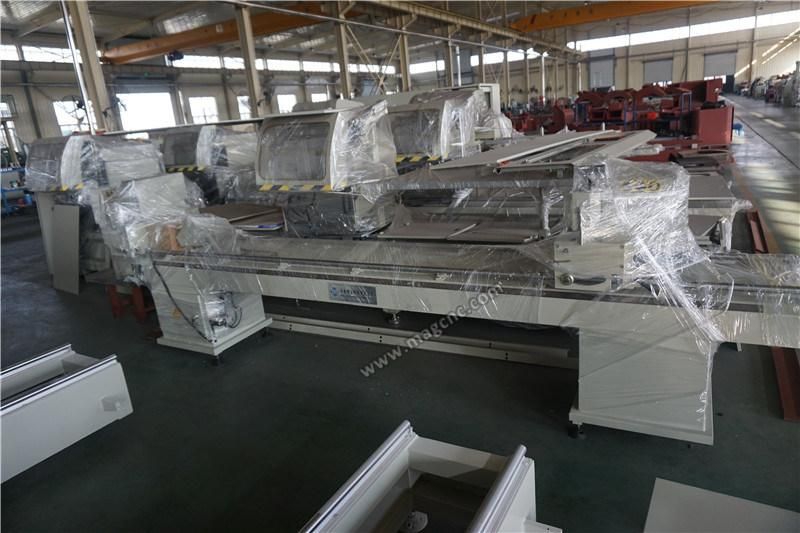

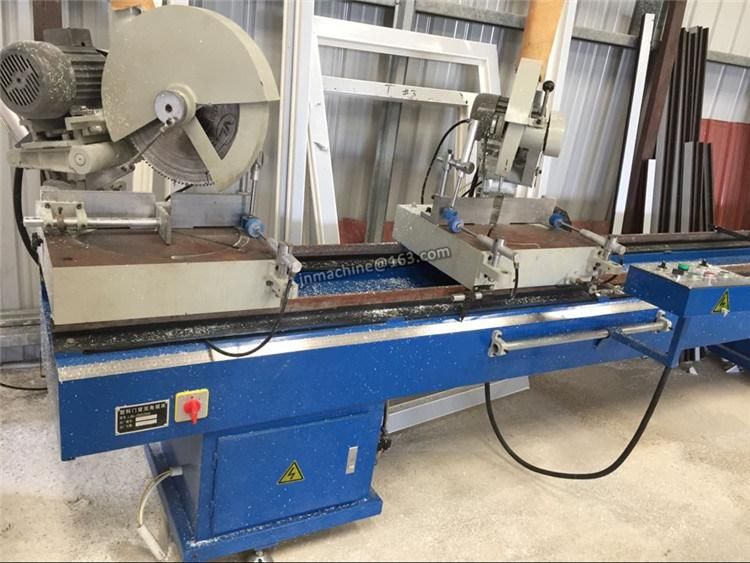

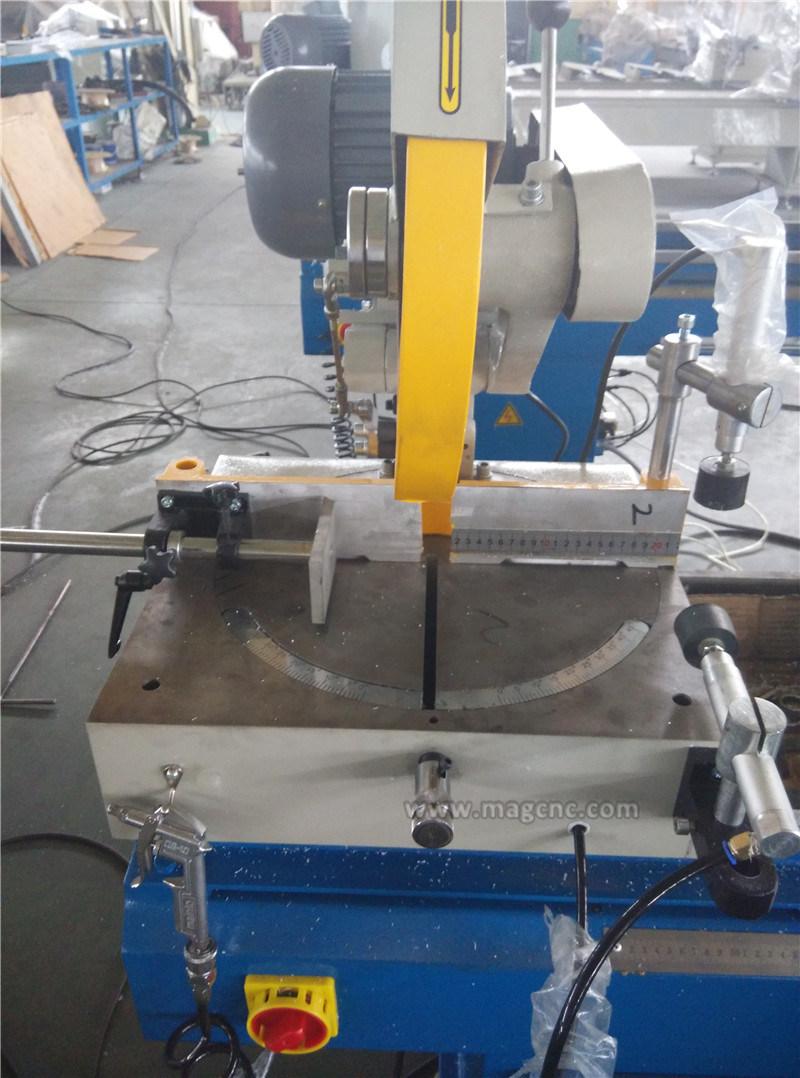

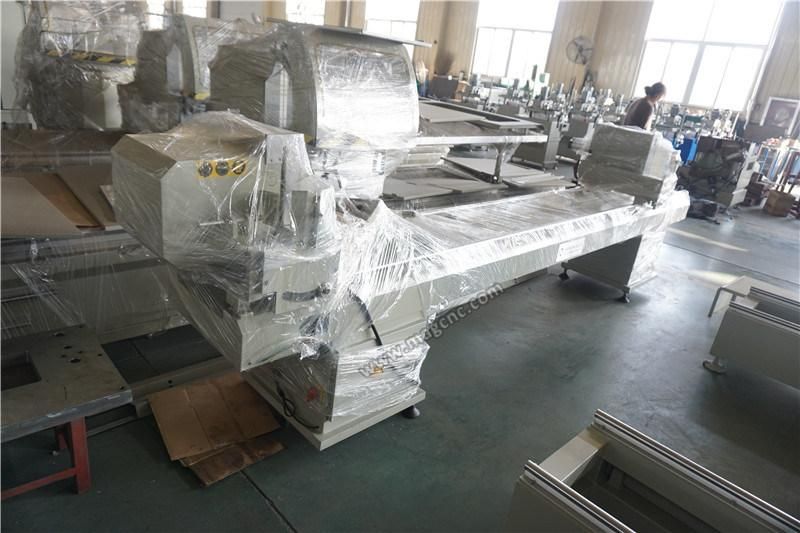

Detailed Photos


PVC Profile Two Head Cutting Machine for PVC Window Processing
PVC Profile Two Head Cutting Machine for PVC Window Processing
PVC Profile Two Head Cutting Machine for PVC Window ProcessingPVC Profile Two Head Cutting Machine for PVC Window ProcessingPVC Profile Two Head Cutting Machine for PVC Window ProcessingPVC Profile Two Head Cutting Machine for PVC Window ProcessingPVC Profile Two Head Cutting Machine for PVC Window ProcessingPVC Profile Two Head Cutting Machine for PVC Window ProcessingPVC Profile Two Head Cutting Machine for PVC Window ProcessingPVC Profile Two Head Cutting Machine for PVC Window ProcessingPVC Profile Two Head Cutting Machine for PVC Window ProcessingPVC Profile Two Head Cutting Machine for PVC Window Processing
