• Model NO.：SV23T Series
• Color：Customized
• Weight：275-850kg
• Control Mode：Slenoid Valve
• Exports Market：Worldwide
• Transport Package：Standard Export Wooden Case
• Specification：CE, ISO9001, SGS
• Trademark：SOV
• Origin：Shanghai, China
• HS Code：8204120000
• Production Capacity：450 Sets Per Month

Basic Info.

Model NO. SV23T Series Color Customized Weight 275-850kg Control Mode Slenoid Valve Exports Market Worldwide Transport Package Standard Export Wooden Case Specification CE, ISO9001, SGS Trademark SOV Origin Shanghai, China HS Code 8204120000 Production Capacity 450 Sets Per Month

Product Description

Feature

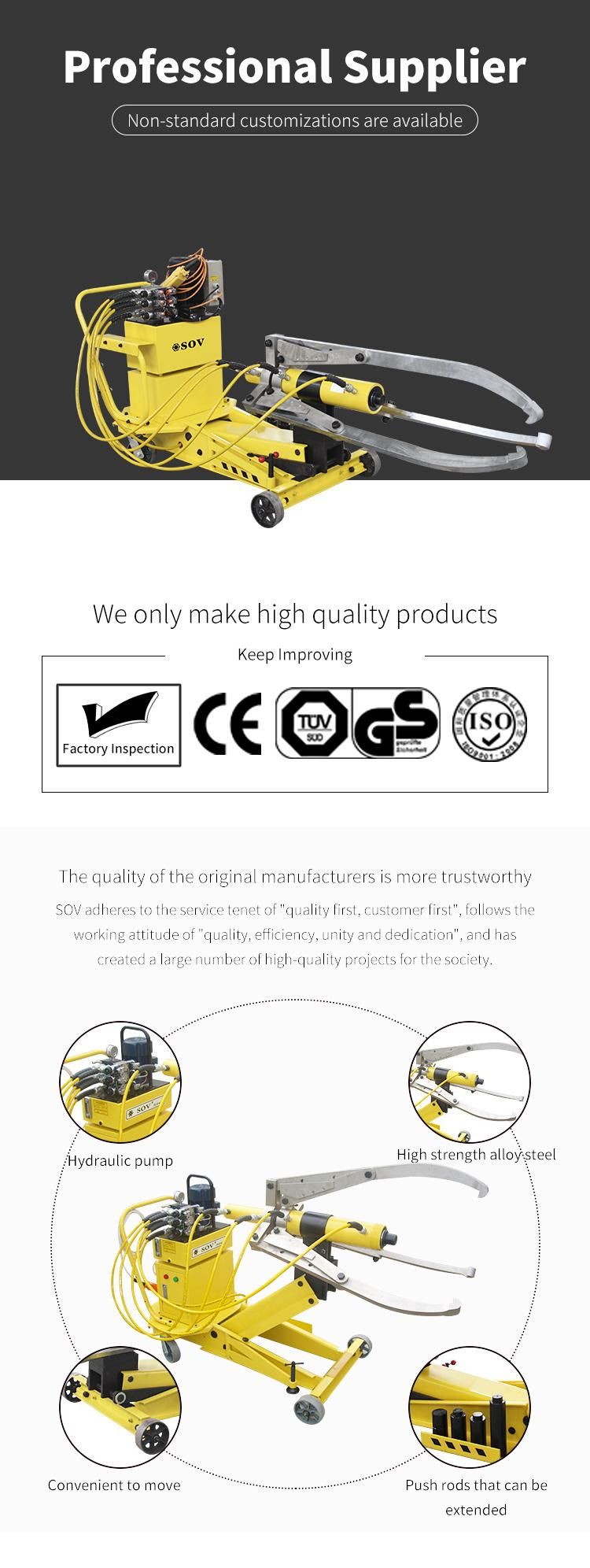

It is used for dismantling rotation parts like the bearing, clutch, lining and wheel gear, etc.
With 25mm horizontal and 5 degree vertical adjustment, it can precisely be centered.
With full automatic control, it can complete the pulling work by one button box.
The power-driven pump station is used for it. It only needs 30 seconds for the hydraulic piston to reach the full travel distance.
The double-acting form is used for the hydraulic piston, which can shorten the travel distance time and speed up the working efficiency.
The forging steel is used for the grabber, with sturdy and durable.
With the electromagnetic valve controls the grabber controlling platform, it can shorten the adjustment time.
The anti-skidding design can avoid the grabber slide or jump off from the work piece.
It can be automatically centering, and the grappling hook can open and close at the same time
Three are two omni-directional wheels in the trolley, which can be self-locking
220V1.1Kw electric hydraulic pump station is used as the power source.

Product Picture

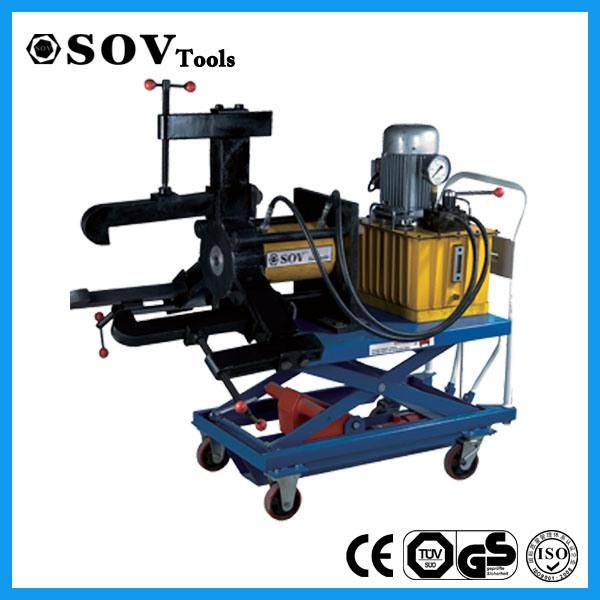

Hot Sale Hydraulic Bearing Puller for Car (SV23T)

Product Parameter

Model	Tonnage(ton)	Stroke(mm)	Min Open distanceA(mm)	Max Open distance A1(mm)	Min heightH(mm)	Max heightH1(mm)	Control mode	Weight (Kg)
SV23T50	50	320	175	1350	800	1250	Solenoid valve	275
SV23T100	100	270	255	1710	700	1650	Solenoid valve	850

Packaging Details
1. Outside packaging: Standard export wooden packing;
2. Inner packaging: Stretch Film;
3. Customized packaging acceptable.
Shipping
1. Small quantity: By international exress, such as DHL, TNT, FEDEX, UPS, etc. Depending on the customers' choice. Goods will arrive within 7 days in normal cicumstances;
2. Large quantity: By sea transportation. Goods will arrive in 30~45 days, according to the diatance.


Our Service
1.24 hours online service;
2. One year warranty, repair and service for the whole life.
3. Question report will be replied in 48 hours.
4. Quality guaranteed.

Company Information
SOV Hydraulic Technoloy (Shanghai) Co., Ltd. Is a manufacturer engaged in designing and manufacturing hydraulic cylinders, synchronous PLC hydraulic system, hydraulic pumps, torque wrenches, and hydraulic components.
Since the establishment in 1995, we successfully transformed from OEM manufacturer for many international brands to create our own brand SOV, and our factory has been approved by CE, ISO9001: 2008 consecutively.


Our customers includ many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.


Our products include:

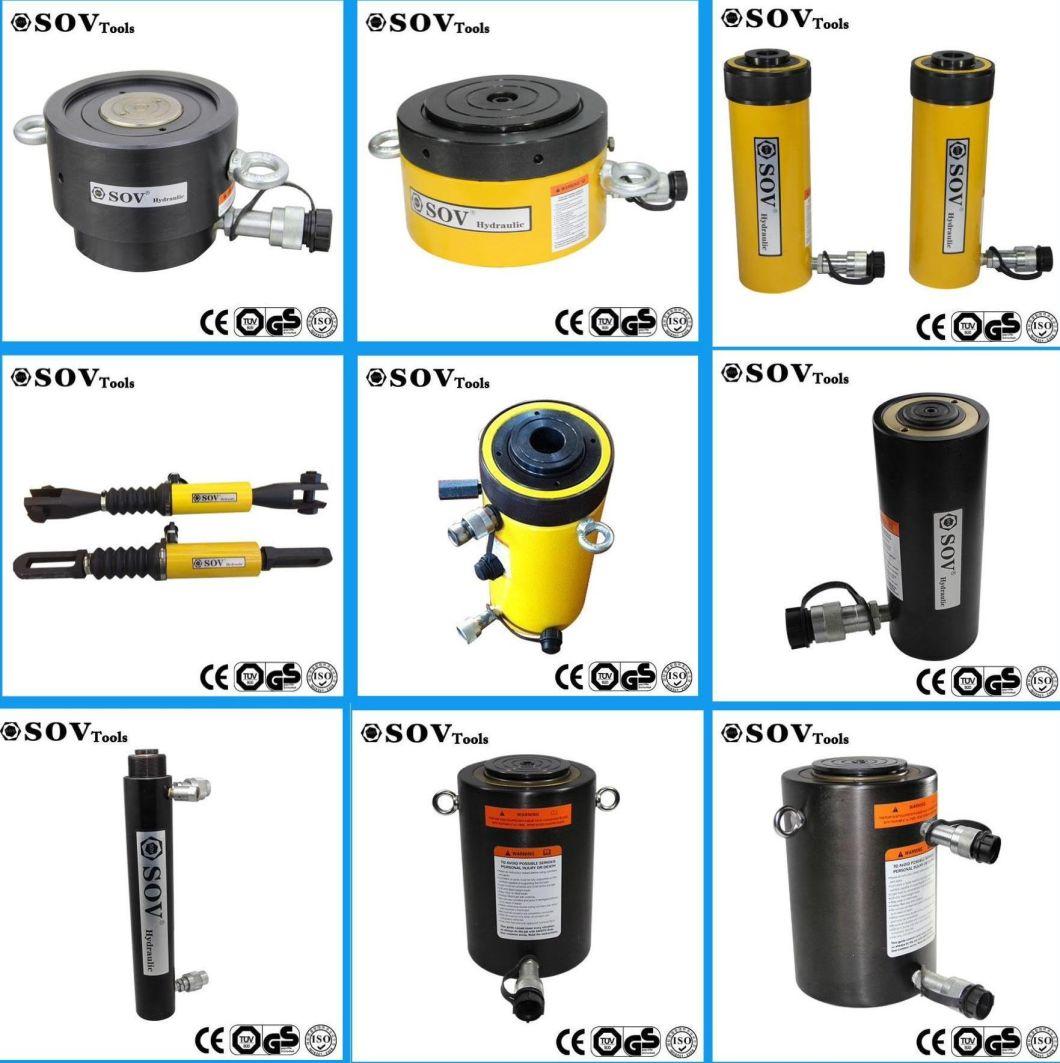

Hydraulic cylinders, jacks (5-1000ton);
