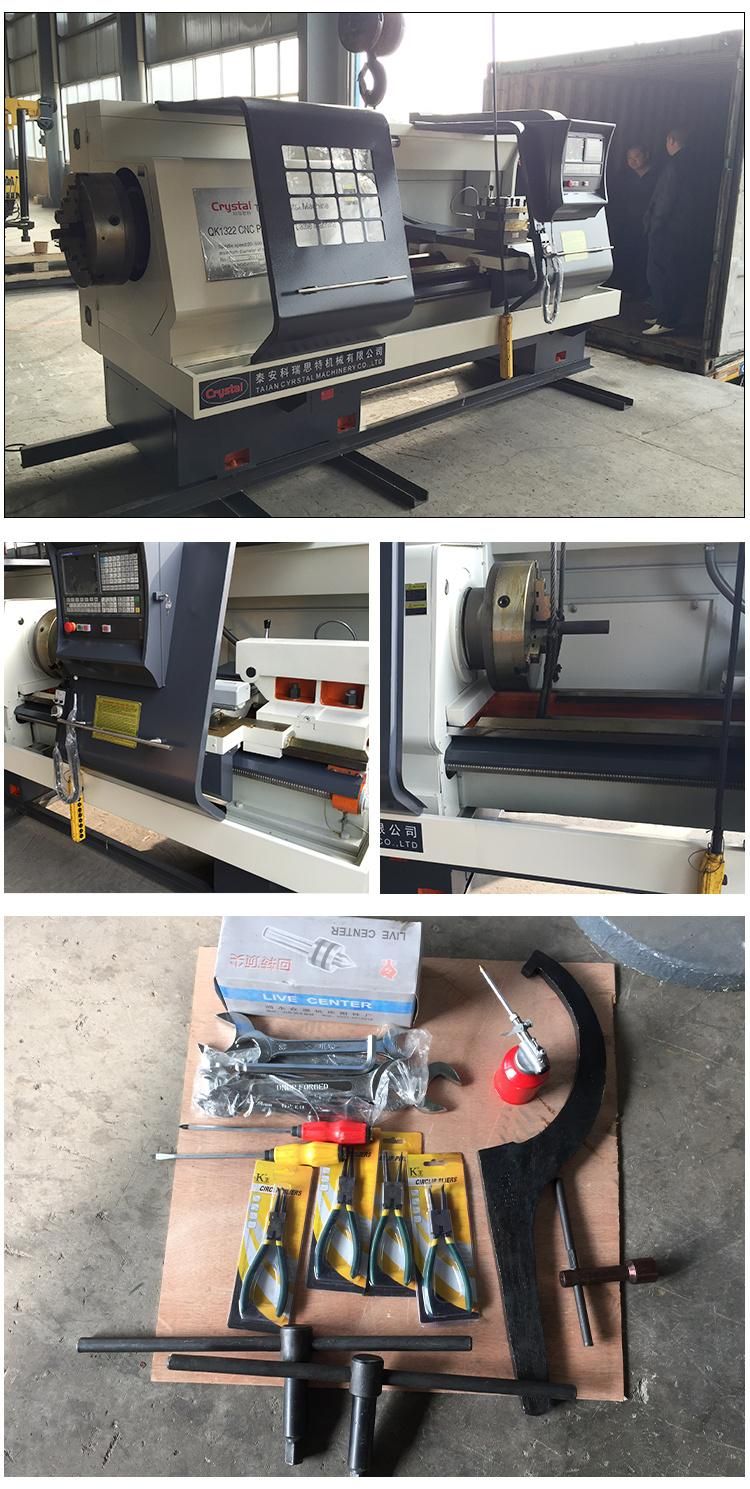

China Horizontal Oil Country Machine CNC Pipe Thread Lathe Machine
Taian Crystal Machinery Co., Ltd.- Bolt Die Type：METRIC
- Bolt Die Material：Tool Steel
- Bolt Die Size：1,4"-3,8"
- Model：6 inch
- Type：Horizontal Lathe
- Power of Main Motor：11kw(Servo)
Base Info
- Model NO.：QK1322
- Precision of Work Piece：It6-It7
- Sleeve Diameter of Tailstock：100mm
- Length*Width*Height：3600*1750*1910
- Automatic Grade：Automatic
- Precision：High Precision
- Power Source：Electric
- Setting Mode：Floor-Type
- Controlling Mode：CNC
- Certification：SGS, Ce
- Transport Package：Standard Wood Packing
- Specification：CE
- Trademark：Crystal
- Origin：Taian City, Shandong Province, China
- HS Code：8458110090
- Production Capacity：30sets,Month
Description
Technical specifications
Maximum diameter of lathe bed (mm)
φ630
Maximum tactical diameter of sliding plate (mm)
φ370
Maximum work-piece length (mm)
1000
Main drive
Form
Main motor servo stepless
Rank of spindle speed
No grade
Range of spindle speed(r/min)
50-620rpm
Hole diameter of spindle (mm)
Φ225
The maximum diameter of the tube
Φ220mm
Power of main motor (KW)
11KW(servo)
Feeding system
Maximum route of knife rest (mm)
X:330 Z:1150
Speed of quick-travel (mm/min)
X:4000 Z:5000
Resetting accuracy
X:0.012 Z:0.016
Precision of work piece
IT6-IT7
Surface roughness
Ra1.6
Tailstock
Sleeve diameter of tailstock (mm)
Φ100
Sleeve trip of tailstock (mm)
250
Cone hole taper tailstock's sleeve
MT5
Knife rest
Standard configuration
Four-station vertical electrical knife rest
Alternative configuration
Horizontal Six-station electrical knife rest
Restting accuracy (mm)
0.01
Length of section of knife handle (mm)
30×30
Machine size
weight
Length*width*height
3600×1750×1910
Net weight (Kg)
5500Kg
Features
1, We set up TRB (tapered rolling bearings) on this lathe to increase the rigidity of the spindle.
2, The spindle bore is very large and set up double chucks both front and back and you can choose
electric chucks as you like.
3, The surface of the slide rail of the bed is treated by the super audio quench, which can be endurable
and wear-resisting. The slide rail f saddle is treated by wear-resisting layer coated, to avoid the crawling.
4, There are two types of speed change: Manual and step less.
5, Set up self lubrication system, and easy to maintain.
