• Model NO.：KCY-85,3WD
• Automatic Grade：Manual
• Precision：High Precision

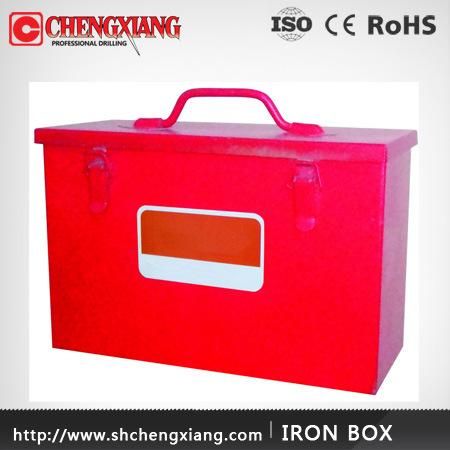

• Transport Package：Iron Box
• Specification：CE
• Trademark：CAYKEN
• Origin：Shanghai

Basic Info.

Model NO. KCY-85/3WD Automatic Grade Manual Precision High Precision Transport Package Iron Box Specification CE Trademark CAYKEN Origin Shanghai

Product Description

Specifications

 Diamond core drillIing machine
With CE certifacate
Professional manufacture in the field of drilling machine
We can offer OEM


 Choose our advantage:



Professional manufacture in the field of drilling machine in China.



Diamond/Magnetic core drillIing machine and wall cutter.

With CE certifacate and offer OEM.

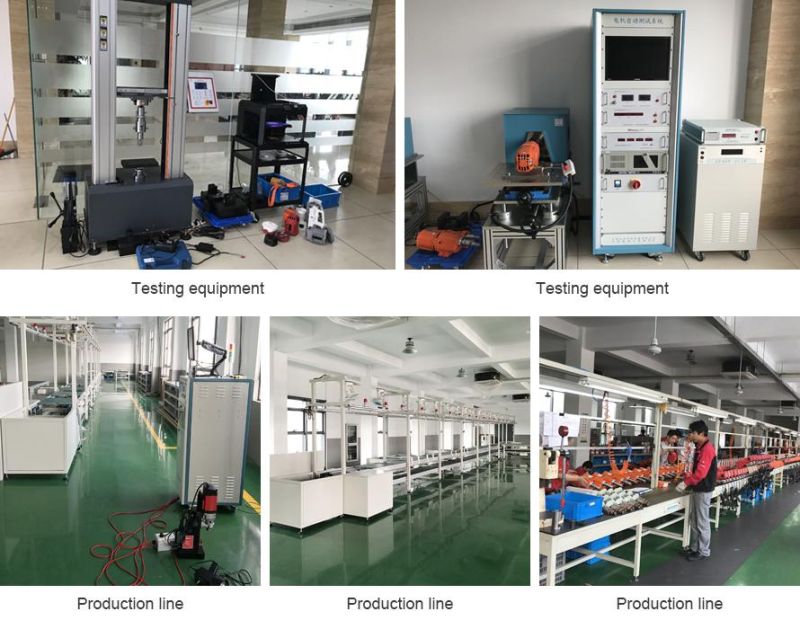

Factory Introduce :



Shanghai Chengxiang Electromechanical Equipment Co., Ltd.



It is a hi-tech enterprise which boasts of its scientific research,manufacturing,and sales.



We are an experts in the field of drilling in China.





Product detail:





Model: KCY-85/3WD







Packing detail:







Product feature:



1. with soft-starting,constant power.

2.with over-loading protection.

3.with stepless speed-regulating.

4.with high magnetic adhesion.

5.with coolant and lubricant integrated device.

  Certificates:

Introduce Magnetic:



 Magnetic drill is a kind of electric tool for adhering and drilling on the horizontal level,side face and top face,and widely used in the building,bridge building,and ship building industries and so on.

You can use the magnetic drill when you can not use drill press and electric hand drill to drill huge steel workpieces or in field operation.

Product Model	KCY-36/2WDO	KCY-48/2WDO	KCY-65/2WD	KCY-85/3WD
Core Drill Range	36MM	48MM	65MM	85MM
Twist Drill Range	13MM	18MM	28MM	32MM
Rated Voltage	110/220V	110/220V	110/220V	110/220V
Rated Frequency	50-60HZ	50-60HZ	50-60HZ	50-60HZ
Rared Input Power	1650W	1700W	1980W	2280W
No-Load Speed	100-260/180-480RPM	90 -35/160-420RPM	100-180/500RPM	100-220/330/410RPM
Max Attraction	14200N	14500N	15800N	16800N
Max Stroke	160mm	180mm	220mm	250mm
WEIGHT:	13KGS	15KGS	15KGS	18KGS
