300mm Bending Range Hydraulic Bus Bar Bender/Brass Bender (CB-300A)
TAIZHOU YINDU TOOLS CO., LTD.- Transport Package：Wooden Box
- Specification：CE
- Trademark：yindu
- Origin：China
Base Info
- Model NO.：CB-300A
- HS Code：84678900
- Production Capacity：1000 Sets Per Month
Description

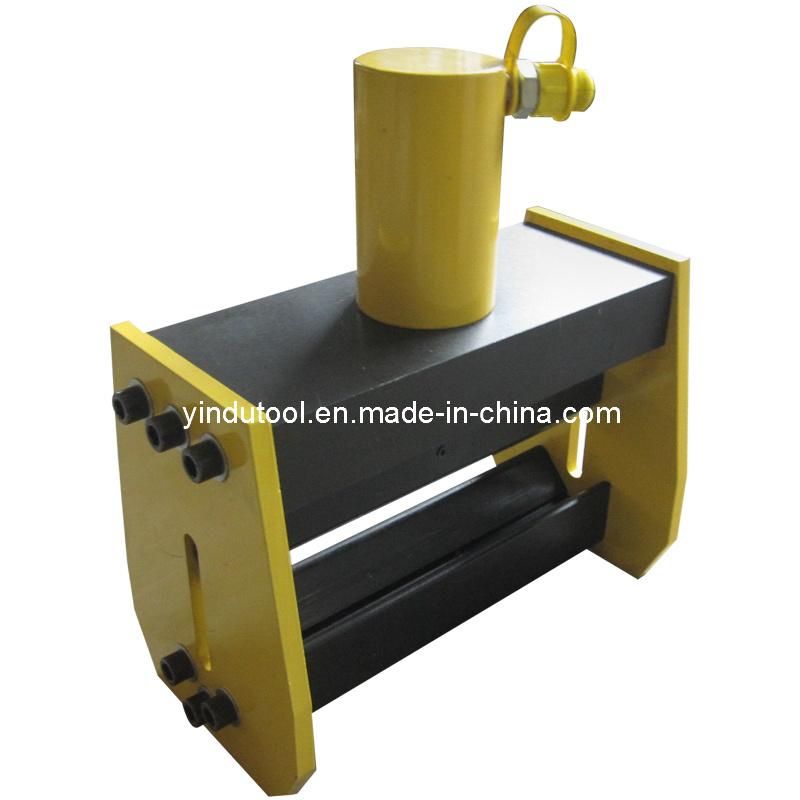

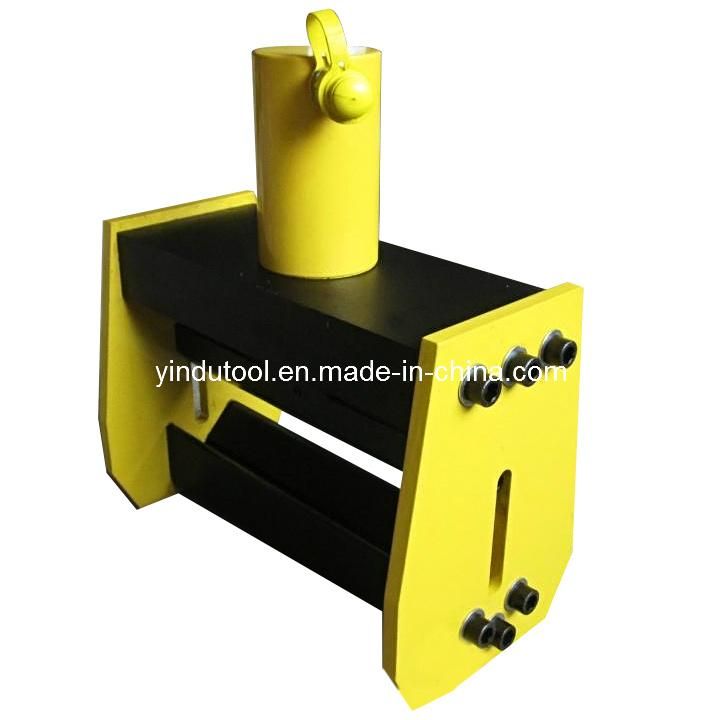

300mm bending range hydraulic bus bar bender/brass bender(CB-300A) Model Output
(T) Breadth
(mm) Max. thickness
(mm) Weight
(kg) Pump related CB-300A 25 300 12 35 CP-700,ZCB-700A CB-200A 25 200 12 29 CP-700,ZCB-700A
This machine is a kind of flat bend copper, aluminum busbar dedicated equipment. CB-150D and CB-150B use bolt type structure, easy access to rows of copper and aluminum, equipped with supporting frames to ensure that copper and aluminum row center line and the centerline of the piston in the same plane. CB-200A and CB-300A use a fixed structure, durable and the plane bending die used to do support. It it equipped with pumps to use.
Functions:
1. Used for bending copper and aluminum busbar and steel bar
2. Could bend different angle with angle meter control
3. With width piston unit set, busbar will not get distorted after bending.
4. The tool body could be opened so that bended object could be easily taken out after bending.
5. Portable unit could be taken to site or fixed in factory for batch bending works.
6. Max bending angle 90 degree.
7. Bended objects won't be damaged.
8.Could match hydraulic electric pumpZCB-700A.ZCB-700D and hydralic hand pump CP-700,CP-700-2.
(T)
(mm)
(mm)
(kg)
This machine is a kind of flat bend copper, aluminum busbar dedicated equipment. CB-150D and CB-150B use bolt type structure, easy access to rows of copper and aluminum, equipped with supporting frames to ensure that copper and aluminum row center line and the centerline of the piston in the same plane. CB-200A and CB-300A use a fixed structure, durable and the plane bending die used to do support. It it equipped with pumps to use.
Functions:
1. Used for bending copper and aluminum busbar and steel bar
2. Could bend different angle with angle meter control
3. With width piston unit set, busbar will not get distorted after bending.
4. The tool body could be opened so that bended object could be easily taken out after bending.
5. Portable unit could be taken to site or fixed in factory for batch bending works.
6. Max bending angle 90 degree.
7. Bended objects won't be damaged.
8.Could match hydraulic electric pumpZCB-700A.ZCB-700D and hydralic hand pump CP-700,CP-700-2.
