Precision Blade Dicing Saw for 8", 6" Wafer Cutting Ds830
Nanjing Wotian Technology Co., Ltd.- Application：Silicon, PCB, Ceramic, Glass, Lithium Niobate, etc
- Type：Fixed
- Power Source：Servo Motor+Step Motor+Dd Motor
- Customized：Customized
- Condition：New
- Workpiece Size：Φ200mm 180mm (for Square)
Base Info
- Model NO.：DS830
- Groove Depth：≤4mm or Customize
- Alignment System：80X Straight Light + Ring Light (40X 210X Optional
- Spindle: Revolution Speed Range：10000~50000 Rpm
- Spindle: Output Power：1.5kw (2.2kw Optional)
- X Axis: Feed Speed Range：0.1~400mm,S
- Y Axis: Single-Step Accuracy：≤0.003mm,5mm
- Z Axis: Repeatability Accuracy：0.002mm
- Power Supply：Single Phase, AC220V±10%
- Power Consumption：0.9kw (Processing); 0.8kw (Warming up)
- Transport Package：Standard Export Packing
- Specification：775mm× 960mm× 1650mm; 600kg
- Origin：China
- HS Code：84862090
- Production Capacity：200+ Sets,Year
Description
Power consumption0.9kW (processing) 0.8kW (warming up) Compressed air Pressure: 0.55~0.8Mpa; average flow rate: 350L/min Cleaning water Pressure: 0.2~0.4Mpa; flow rate 3.0L/min Cooling water Pressure: 0.2~0.4Mpa; flow rate 1.5L/min Exhaust air rate 1.8m3/min (ANR) Overall dimensions W×D×H 775mm×960mm×1650 mm Weight 600kg
• Use clean, oil-free air (dew point below -15, residual oil: 0.1 ppm, and filtration rating: 0.01μm/99.5 % or more).
• Keep room temperature fluctuations within ±1ºC of the set value (Set value should be between 20ºC - 25ºC), indoor humidity no more than 80% and no condensation.
• Keep cutting water and cleaning water 2ºC above room temperature (fluctuations within ±1ºC). Keep temperature of cooling water the same as room temperature.
• The machines should be used in an environment, free from external vibration. Do not install machine near a ventilation opening, heat generation equipment or oil mist generating parts.
• This machine uses water. In case of water leakage, please install the machine on the floor with sufficient waterproofing and drainage treatments.
• Please follow the product manual of our company.

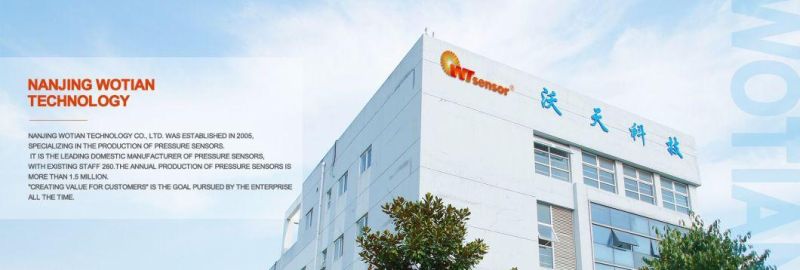

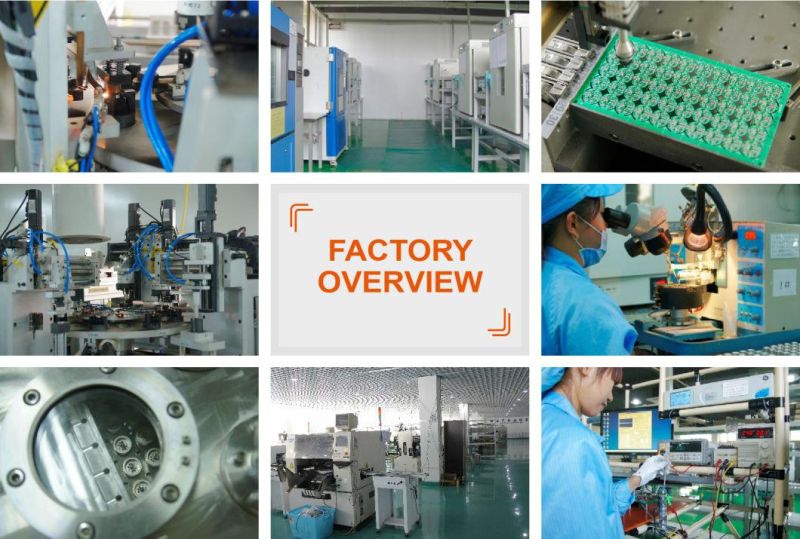

About Us:
Certifications:
FAQ:
1. Q: Are you manufacturer or trading company?
A: We are manufacturer which focuses on pressure sensor for 33 years.
2. Q: What international certificates do you have?
A: ISO9001, CE, RoHS Certificated.
3. Q: What is your production capacity?
A: We produced 1500000 pieces pressure sensor in year 2017.
4. Q: What is the lead time of your product?
A: Stocks are available for some products. The typical lead time is 8~14 working days for product without customization.
Note: lead time may vary base on different products. Please contact us for detailed lead time.
5. Q: What is the warranty of your products?
A: Our warranty time is 18 months after shipment.
6. Q: Do you provide customized products?
A: Yes, we can laser mark your logo, model and product information according to your requirement. We provide OEM and ODM service.
| Environmental Conditions |
• Use clean, oil-free air (dew point below -15, residual oil: 0.1 ppm, and filtration rating: 0.01μm/99.5 % or more).
• Keep room temperature fluctuations within ±1ºC of the set value (Set value should be between 20ºC - 25ºC), indoor humidity no more than 80% and no condensation.
• Keep cutting water and cleaning water 2ºC above room temperature (fluctuations within ±1ºC). Keep temperature of cooling water the same as room temperature.
• The machines should be used in an environment, free from external vibration. Do not install machine near a ventilation opening, heat generation equipment or oil mist generating parts.
• This machine uses water. In case of water leakage, please install the machine on the floor with sufficient waterproofing and drainage treatments.
• Please follow the product manual of our company.
