• Model NO.：TN-9B
• Adaptable Bolts Dia：3,4"7,8"1"(M20 M22 M24)
• Transport Package：Box
• Specification：5.3kg
• Trademark：HANPU
• Origin：Shandong China

Basic Info.

Model NO. TN-9B Adaptable Bolts Dia 3/4"7/8"1"(M20 M22 M24) Transport Package Box Specification 5.3kg Trademark HANPU Origin Shandong China

Product Description

Product description

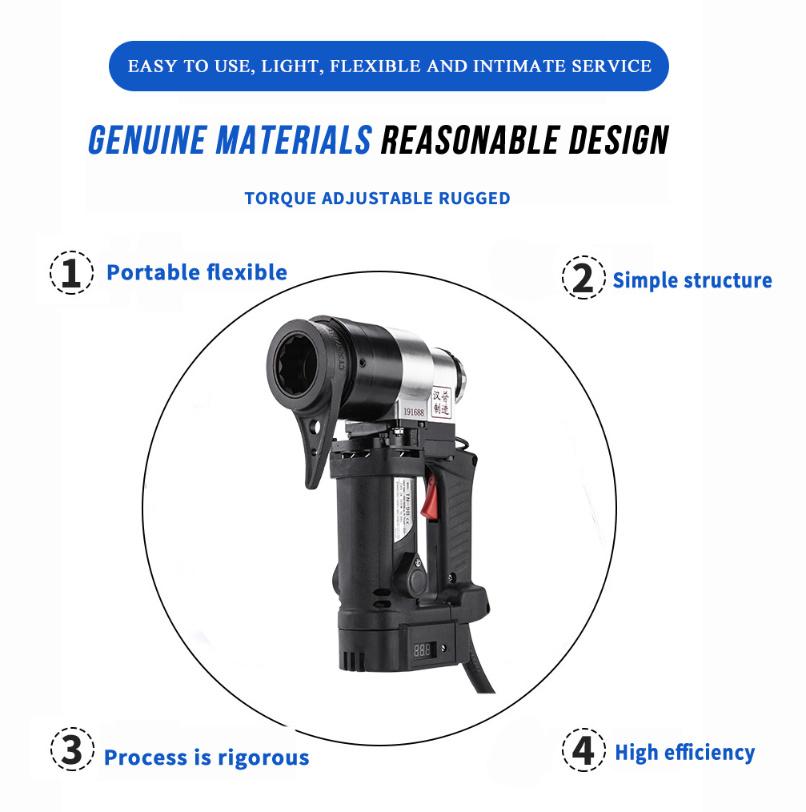

The electric torque wrench TN-9B can set the torque value in advance when working. When the wrench reaches the set torque value, the wrench automatically stops, so it is also known as the "torque control wrench". It is mainly used for fastening and loosening large hex bolts, torque range: 400-900N.m can tighten M20 M22 M24 high strength bolts.




 Product parameters

Model : TN-9B
Frequency : 50-60Hz
Voltage : 230V / 115V AC
Max Current : 7A/14A
Max Power Consumption : 1650W
Torque Range : 400-900N.M
Rotation Speed : 9.5rpm
Weight (Main Body) : 5.3KG
Protect Class : Double Insulation
Applicable Bolt : S-10T (M20,M22 M24) ; A325 (3/4" 7/8'',1'') ; A490(3/4" 7/8")

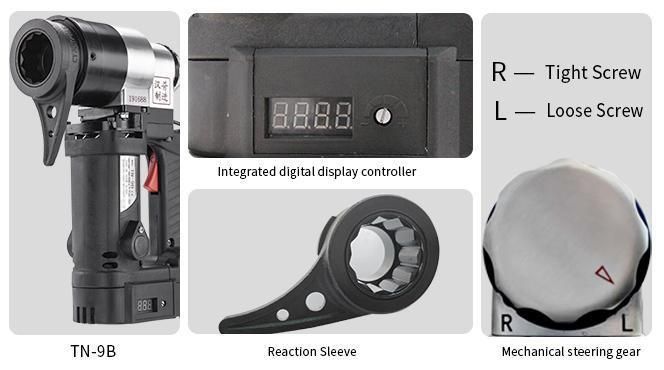

Product details




instructions

1. Almost all spare parts are manufacturered by ourselves, we could control each step quality; we have stricktly quality controll and inspection systerm.

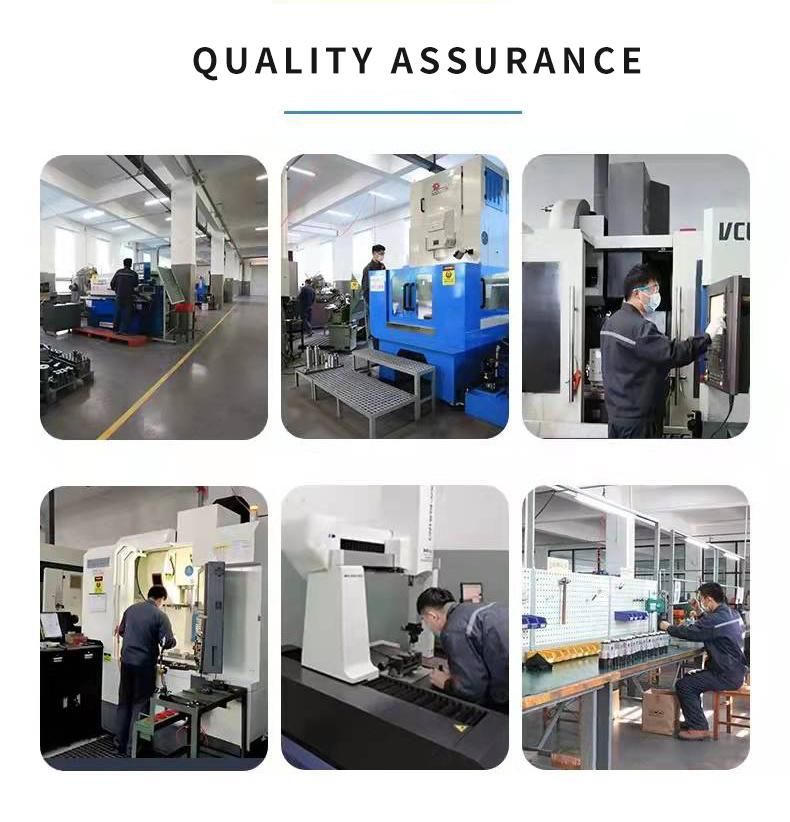

2. All our production equipement are imported from Germany, Swiss & Japan. High quality equipemtn could keep our products quality.

3. We adopts German motor, powerful and quality stable.

4. The company has a dedicated after-sales customer service that is available to you 24 hours a day.
