• Model NO.：TN-25G
• Power Supply Voltage：230V
• Battery Voltage：0
• Unloaded Speed：10rpm
• Power Source：Electricity
• Protect：Double Insulation
• Transport Package：Carton and Plastic Tool Cabinet
• Specification：1000-2500Nm torque range
• Trademark：HANPU
• Origin：China
• HS Code：8467299000

Basic Info.

Model NO. TN-25G Power Supply Voltage 230V Battery Voltage 0 Unloaded Speed 10rpm Power Source Electricity Protect Double Insulation Transport Package Carton and Plastic Tool Cabinet Specification 1000-2500Nm torque range Trademark HANPU Origin China HS Code 8467299000

Product Description

Models and Technical details:


Models	Torque Range
TL-3B  ,  TN-3B	100-300 Nm
TL-5B  ,  TN-5B	200-500 Nm
TL-7LP  ,  TN-7LP	350-700 Nm
TL-9B  ,  TN-9B	400-900 Nm
TL-12LP  ,  TN-12LP	500-1200 Nm
TL-21LP  ,  TN-21LP	900-2100 Nm
TL-25G  ,  TN-25G	1000-2500 Nm
TL-35G  ,  TN-35G	1700-3500 Nm
TL-60G	2000-6000 Nm
TL-100G	5000-10000 Nm



Difference between TL and TN series:

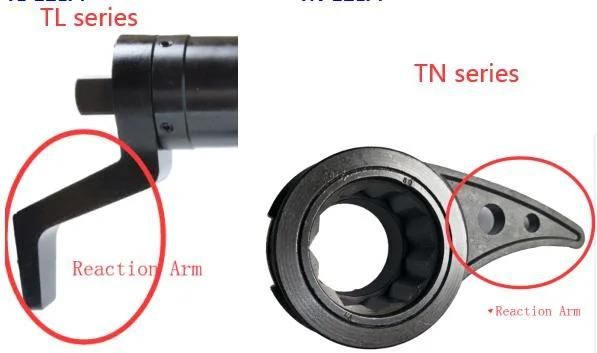

* Compared with TL series Torque Wrench, TN series are only the reaction arm part difference. As the follow picture show:

*TL type suits better when distance among bolts are long.
  Like: Large sale equipment assemble work, Pipeline project, etc.

*TN type reaction arm center distance is short. As picture show, the reaction arm is also part of the outer socket. This type socket can only buy from HANPU.
  TN type suits better to dense bolts.
  Like: High-level steel structure building project, Huge steel bridge project,etc.




Welcome contact for any other details !
